Camshaft Position Sensor: Locations

Component ID: 44
Component : CAMSHAFT POSITION SENSOR

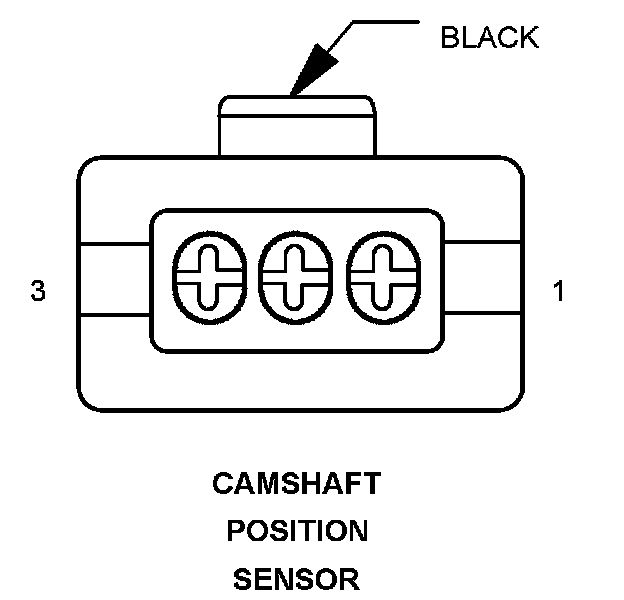

Connector:
Name : CAMSHAFT POSITION SENSOR
Color : BLACK
# of pins : 3




Pin Circuit Description
1 20BR/DG SENSOR GROUND
2 20PK CAMSHAFT POSITION SENSOR SIGNAL
3 20RD/BL FUSED ENGINE CONTROL RELAY OUTPUT

Component Location - 7




Component Location - 8
