Camshaft Position Sensor - Removal
REMOVAL
1. Disconnect the negative battery cable.

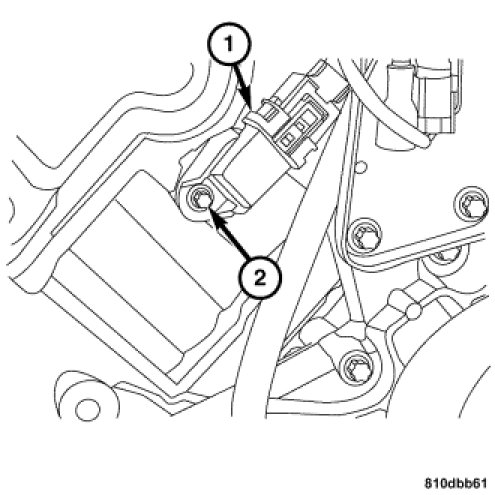

2. Disconnect the camshaft position sensor harness connector (1).
3. Remove the retaining bolt (2).
4. Remove the camshaft position sensor from the cylinder head.
REMOVAL
1. Disconnect the negative battery cable.
2. Disconnect the camshaft position sensor harness connector (1).
3. Remove the retaining bolt (2).
4. Remove the camshaft position sensor from the cylinder head.
