Crankshaft Position Sensor: Locations

Component ID: 66
Component : CRANKSHAFT POSITION SENSOR

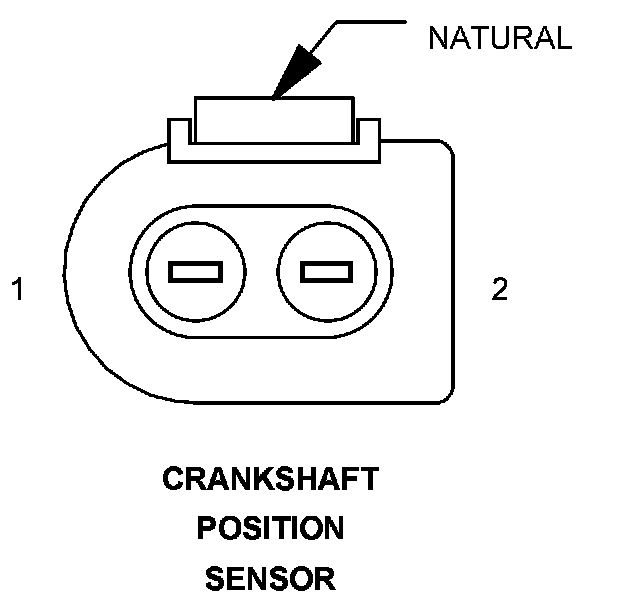

Connector:
Name : CRANKSHAFT POSITION SENSOR
Color : NATURAL
# of pins : 2




Pin Circuit Description
1 20DG CRANKSHAFT POSITION SENSOR SIGNAL 2
2 20DG/WT CRANKSHAFT POSITION SENSOR SIGNAL 1

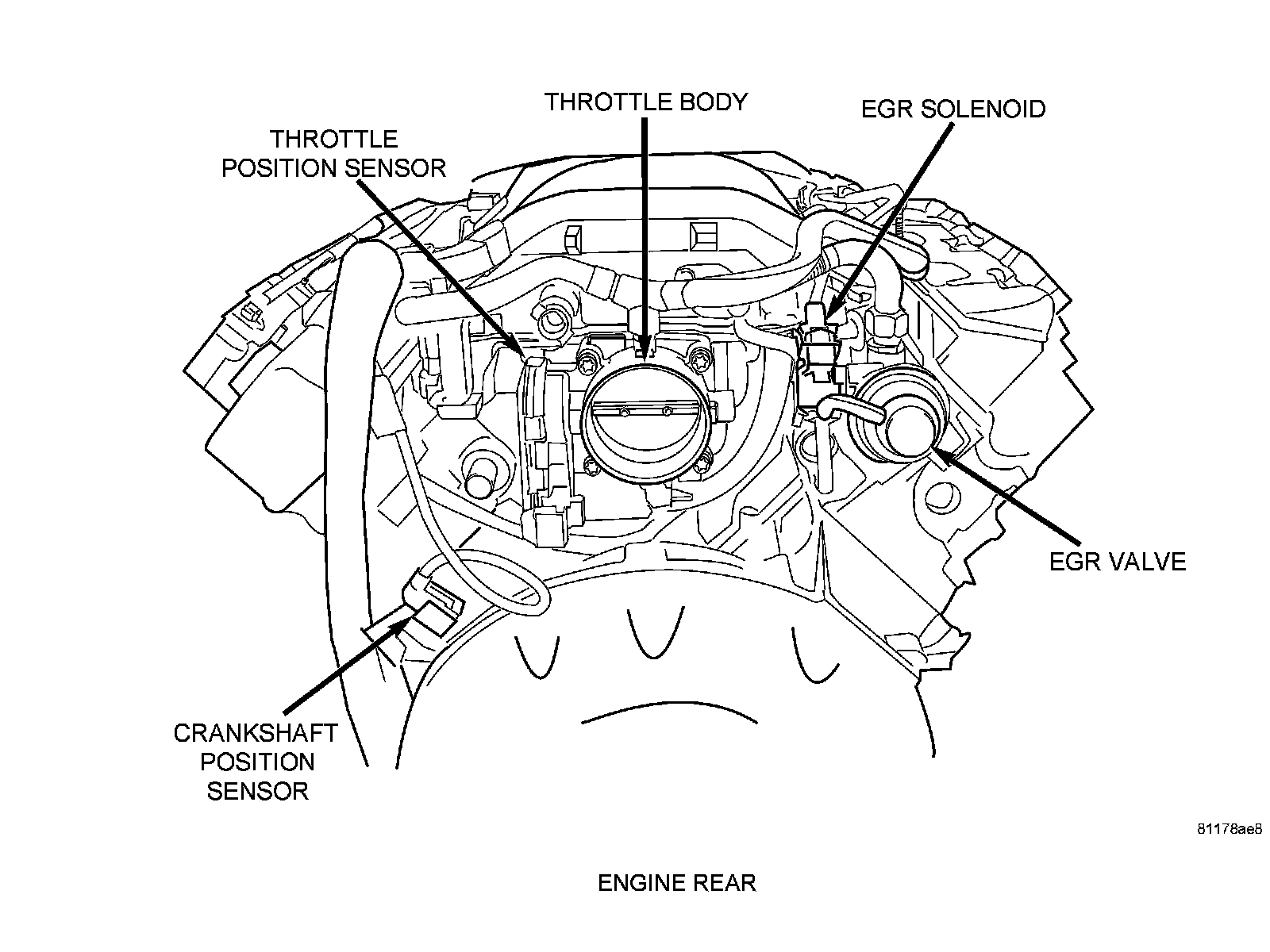

Component Location - 9




Component Location - 7
