Data Link Connector: Diagrams

Component ID: 67

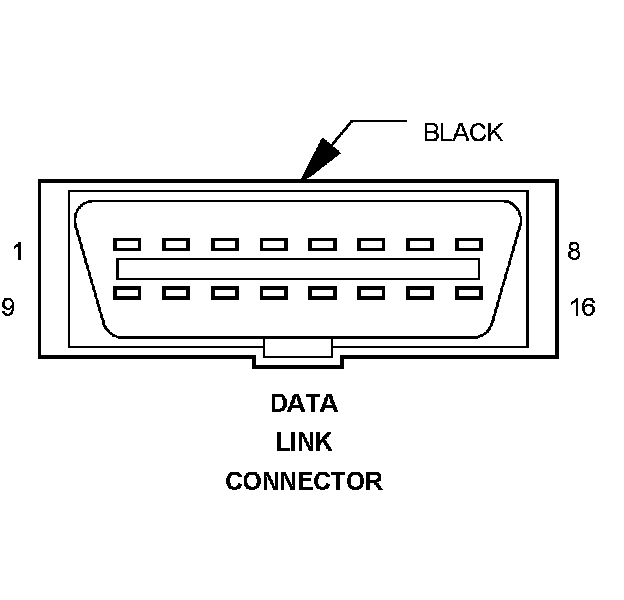

Component : DATA LINK CONNECTOR

Connector:
Name : DATA LINK CONNECTOR
Color : BLACK
# of pins : 16




Pin Circuit Description
1 20BK/WT SCI TRANSMIT
2 - -
3 20DG/YL SCI RECEIVE
4 18BR GROUND
5 20BR/YL SENSOR GROUND
6 - -
7 22BL SCI TRANSMIT
8 20RD/WT FUSED IGNITION SWITCH OUTPUT
9 22RD/YL SCI TRANSMIT
10 - -
11 20DG SCI TRANSMIT
12 20WT/DG CAN INTERIOR BUS (125K) (+)
13 20BK/DG CAN INTERIOR BUS (125K) (-)
14 - -
15 22BK/BL SCI TRANSMIT
16 18RD/DG FUSED B(+)
