Fuel Tank Pressure Sensor: Diagrams

Component ID: 102

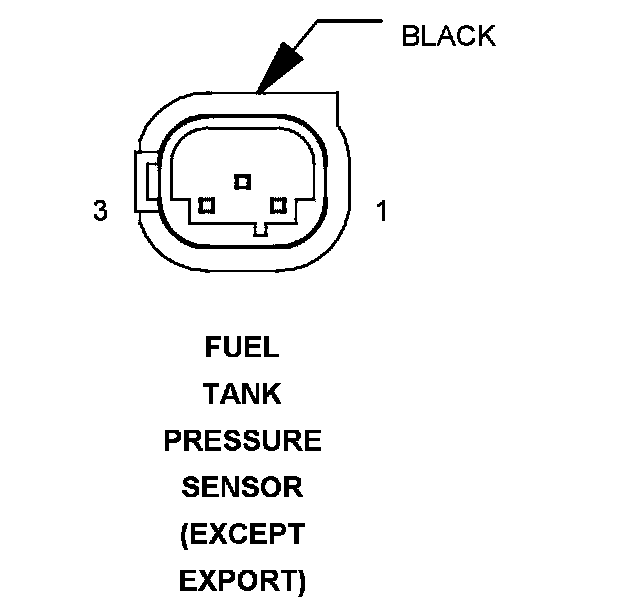

Component : FUEL TANK PRESSURE SENSOR

Connector:
Name : FUEL TANK PRESSURE SENSOR
Color : BLACK
# of pins : 3
Qualifier : (EXCEPT EXPORT)




Pin Circuit Description
1 20DG FUEL TANK PRESSURE SENSOR SIGNAL
2 20BR/YL SENSOR GROUND
3 20BK/RD 5 VOLT SUPPLY
