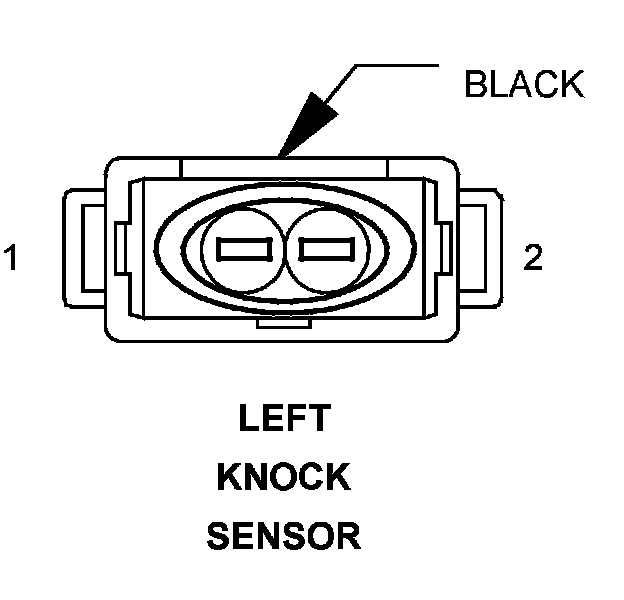

Left Knock Sensor

Component ID: 187
Component : LEFT KNOCK SENSOR

Connector:
Name : LEFT KNOCK SENSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20BK SENSOR GROUND
2 20YL LEFT KNOCK SENSOR SIGNAL
