Oil Pressure Sensor: Diagrams

Component ID: 209
Component : OIL SENSOR

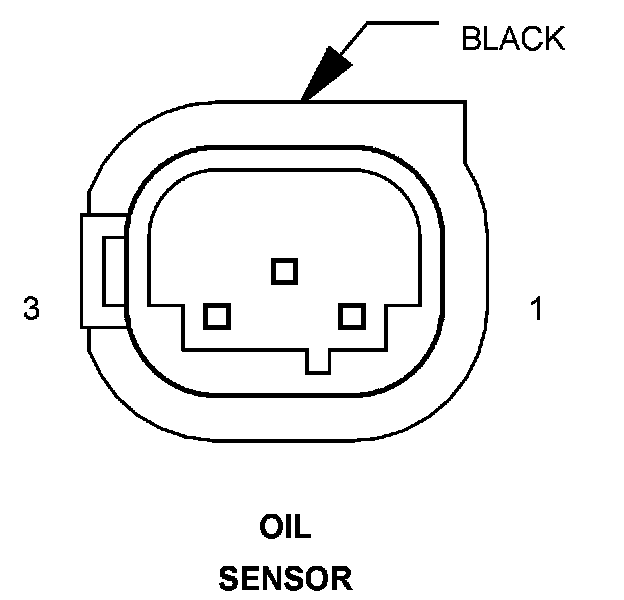

Connector:
Name : OIL SENSOR
Color : BLACK
# of pins : 3




Pin Circuit Description
1 20GY/BL OIL SENSOR SIGNAL
2 20BR/BK SENSOR GROUND
3 20RD/YL 5 VOLT SUPPLY
