Removal

REMOVAL





CAUTION: When disconnecting a high tension cable from a spark plug or from the ignition coil, twist the rubber boot slightly (1/2 turn) to break it loose. Grasp the boot (not the cable) and pull it off with a steady, even force.

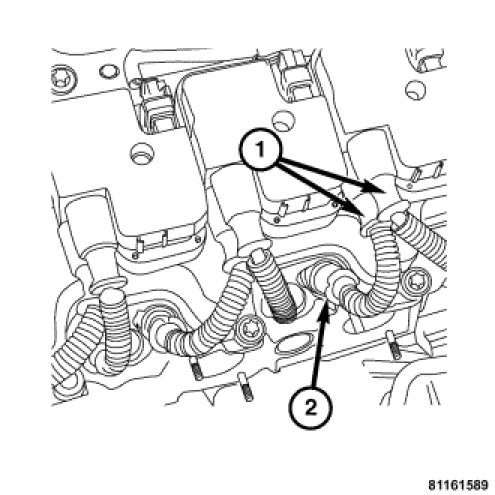

1. Remove the spark plug cable boot from the ignition coil (1).
2. Turn and pull the spark plug cable metal clad boot (2) from the spark plug.
