Powertrain Control Module - Removal







POWERTRAIN CONTROL MODUEL - LHD





1. Disconnect the negative battery cable (2).
2. Slide the clips forward to remove the plastic control module box cover (1).




3. Holding the metal powertrain control module retaining clip (1) back, pull the powertrain control module up and out of the control module box.

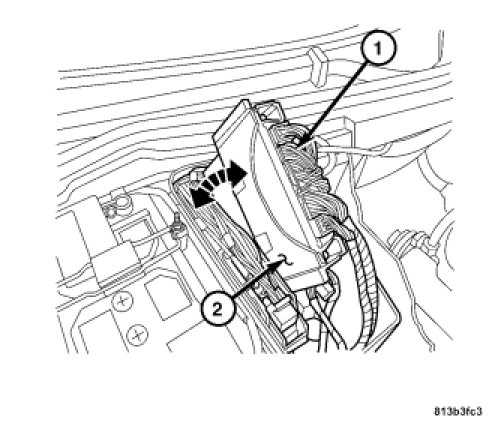

4. Disconnect the electrical connectors (1) and remove the powertrain control module (2).
