Oil Pan, Engine

LOWER OIL PAN

Install the lower oil pan and oil pan bolts. Tighten the lower oil pan bolts to 14 Nm (10 ft. lbs.).

UPPER OIL PAN

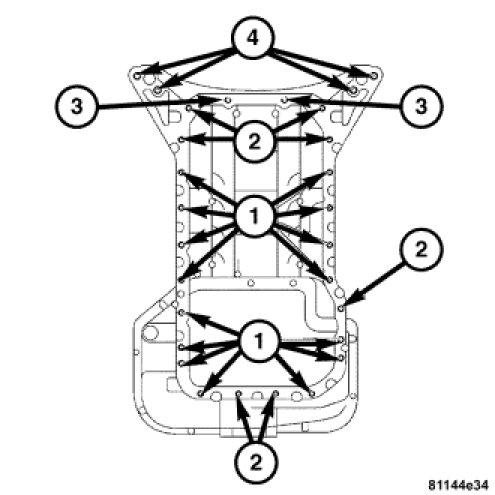

1. Install the oil pan bolts with the proper size and length bolt in the correct bolt hole.
- (1) M6 X 20
- (2) M6 X 40
- (3) M6 X 90
- (4) M8 X 30

2. Tighten the M6 size bolts to 10 Nm (89 in. lbs). Follow the tightening sequence diagram.
3. Tighten the M8 size bolts to 20 Nm (15 ft. lbs.). Follow the tightening sequence diagram.
