Wiper Module - Installation

INSTALLATION





CAUTION: During installation, do not allow the wiper module to contact the windshield.

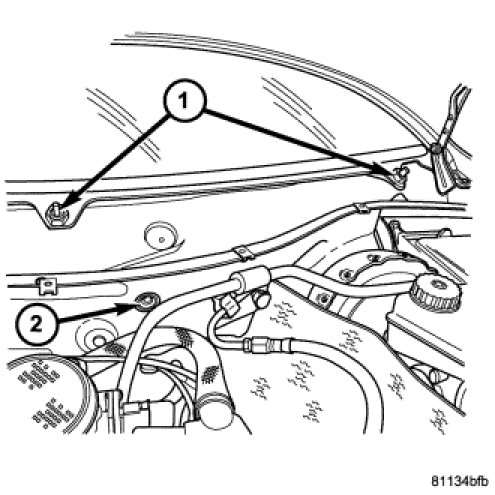

1. Align the wiper module into the cowl over the two upper attachment nut mounting studs (1).
2. Install the two wiper module upper attachment nuts and secure.
3. Install the lower wiper module attachment bolt through the hole (2) in the cowl and secure.

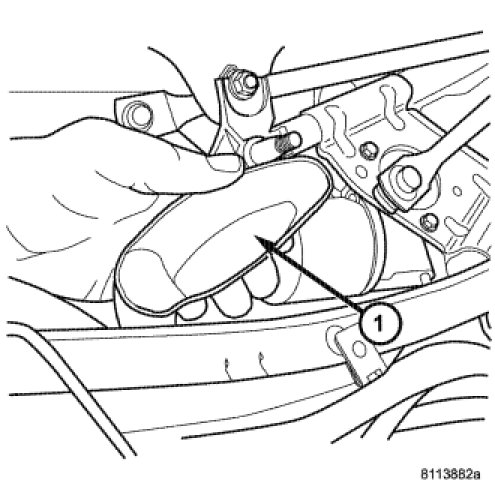

4. Install the cowl grille drain (1) into the cowl and rotate clockwise to secure. Insure the grommet is seated fully.




NOTE: Insure that the wiper motor harness and its rubber grommets are seated and routed properly to avoid interference with moving parts.

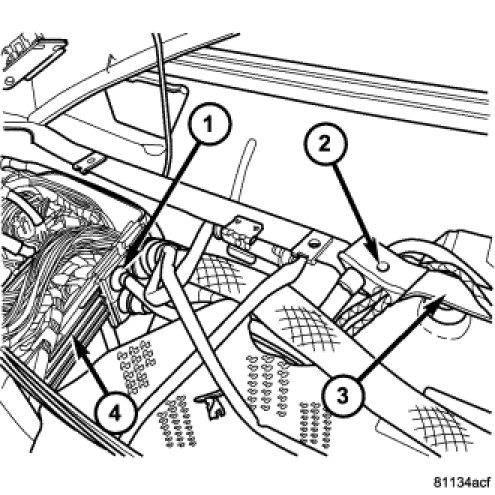

5. Install the wiper motor harness and rubber grommet (2) into the cowl ledge (3).
6. Install the wiper motor harness and rubber grommet (1) into the control module box (4).

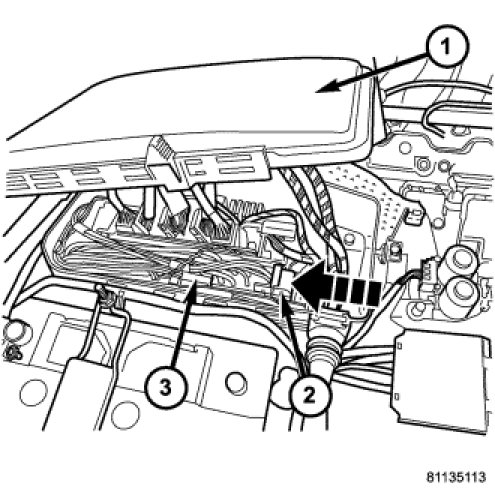

7. Connect the wiper motor harness connector (2) to the Body Control Module (BCM) (3) and slide the locking tab fully over the connector (2).
8. Install the control module box cover (1).
9. Install the cowl grille. Cowl Moulding / Trim.
10. Install the wiper arms. Wiper Arms - Installation.
11. Connect the negative battery cable.
