Power Outlet-Rear

Component ID: 198
Component : POWER OUTLET-REAR

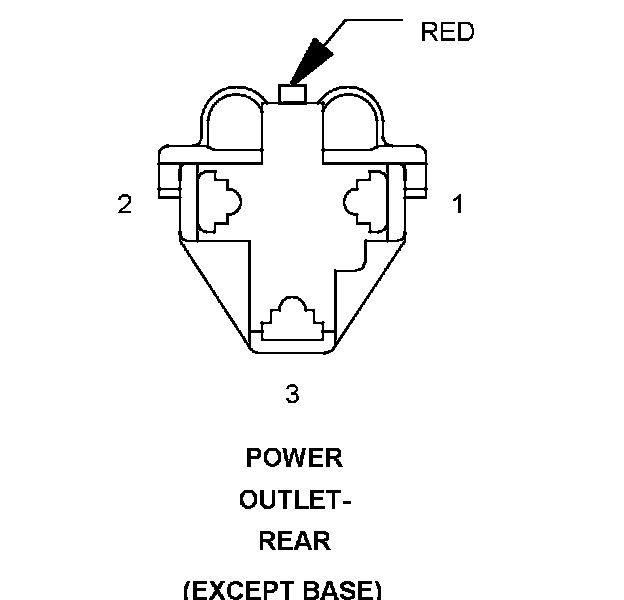

Connector:
Name : POWER OUTLET-REAR
Color : RED
# of pins : 3
Qualifier : (EXCEPT BASE)




Pin Circuit Description
1 F985 16PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
Pin Circuit Description
1 F985 16PK/RD FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2 - -
3 Z909 16BK GROUND

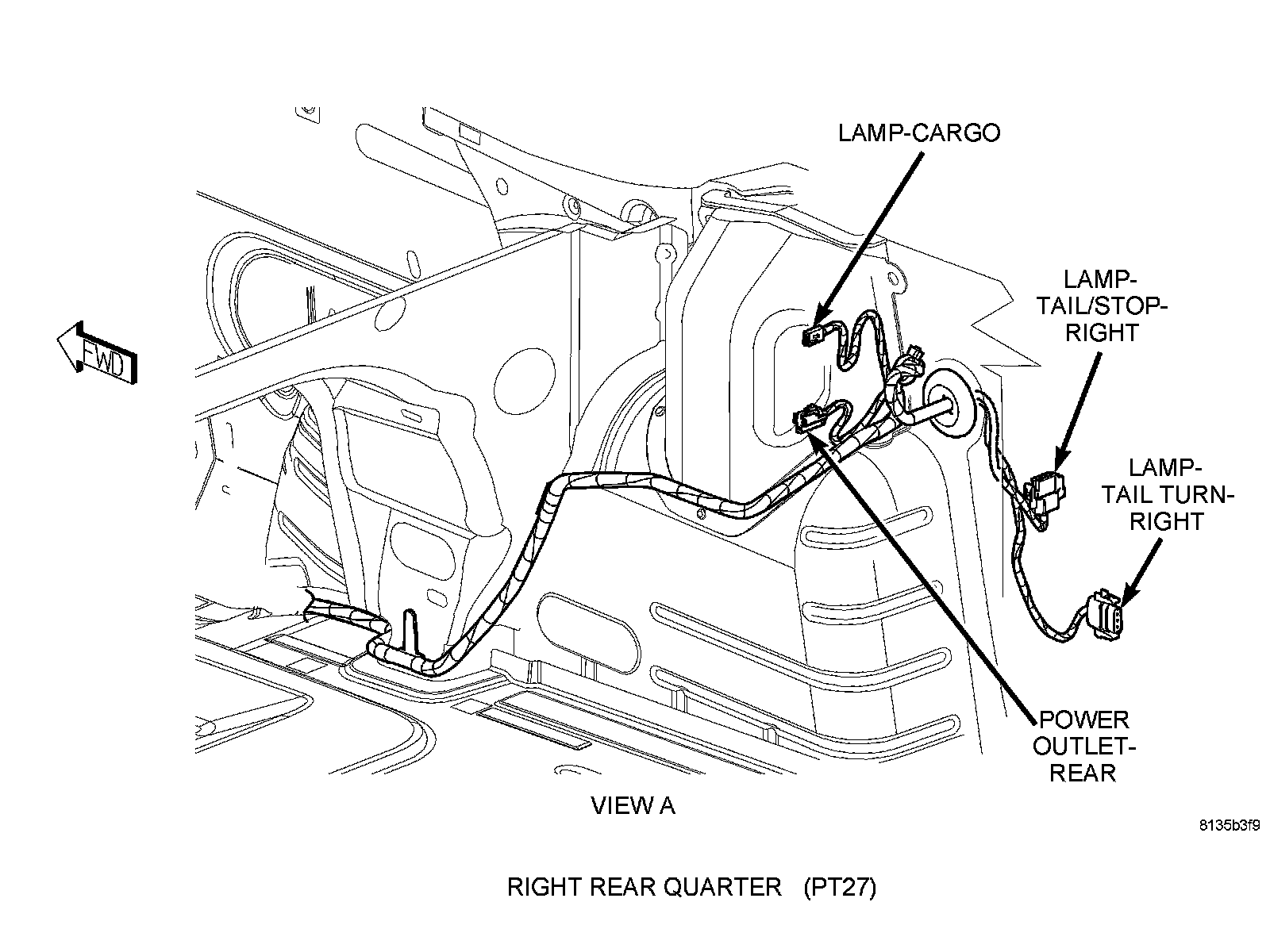

Component Location - 52

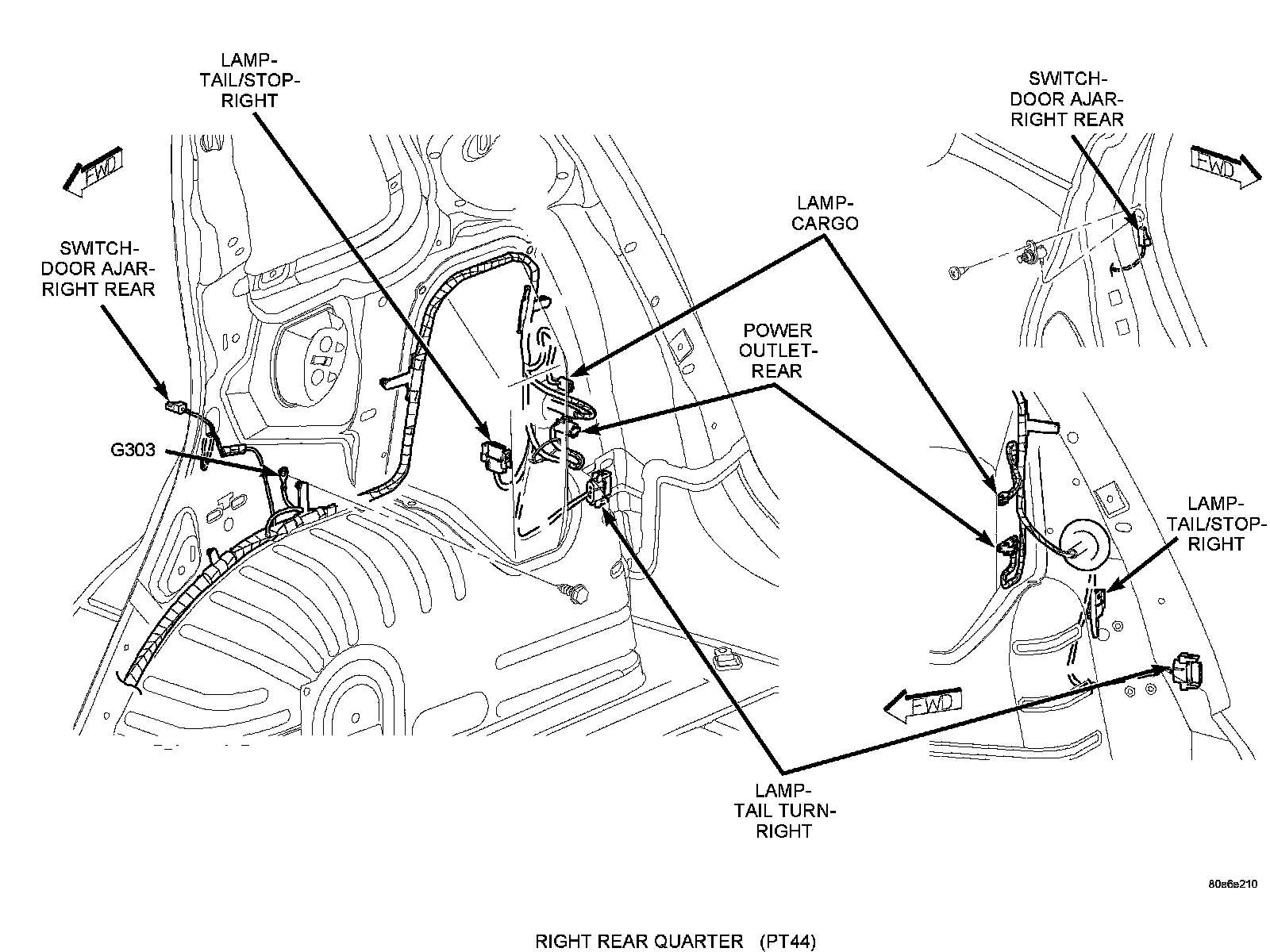

Component Location - 53
