Circuit Breaker

Component ID: 50
Component : CIRCUIT BREAKER

Connector:
Name : CIRCUIT BREAKER
Color :
# of pins : 2




Pin Circuit Description
1 A937 16RD/DG FUSED B(+)
2 A937 16RD FUSED B(+)

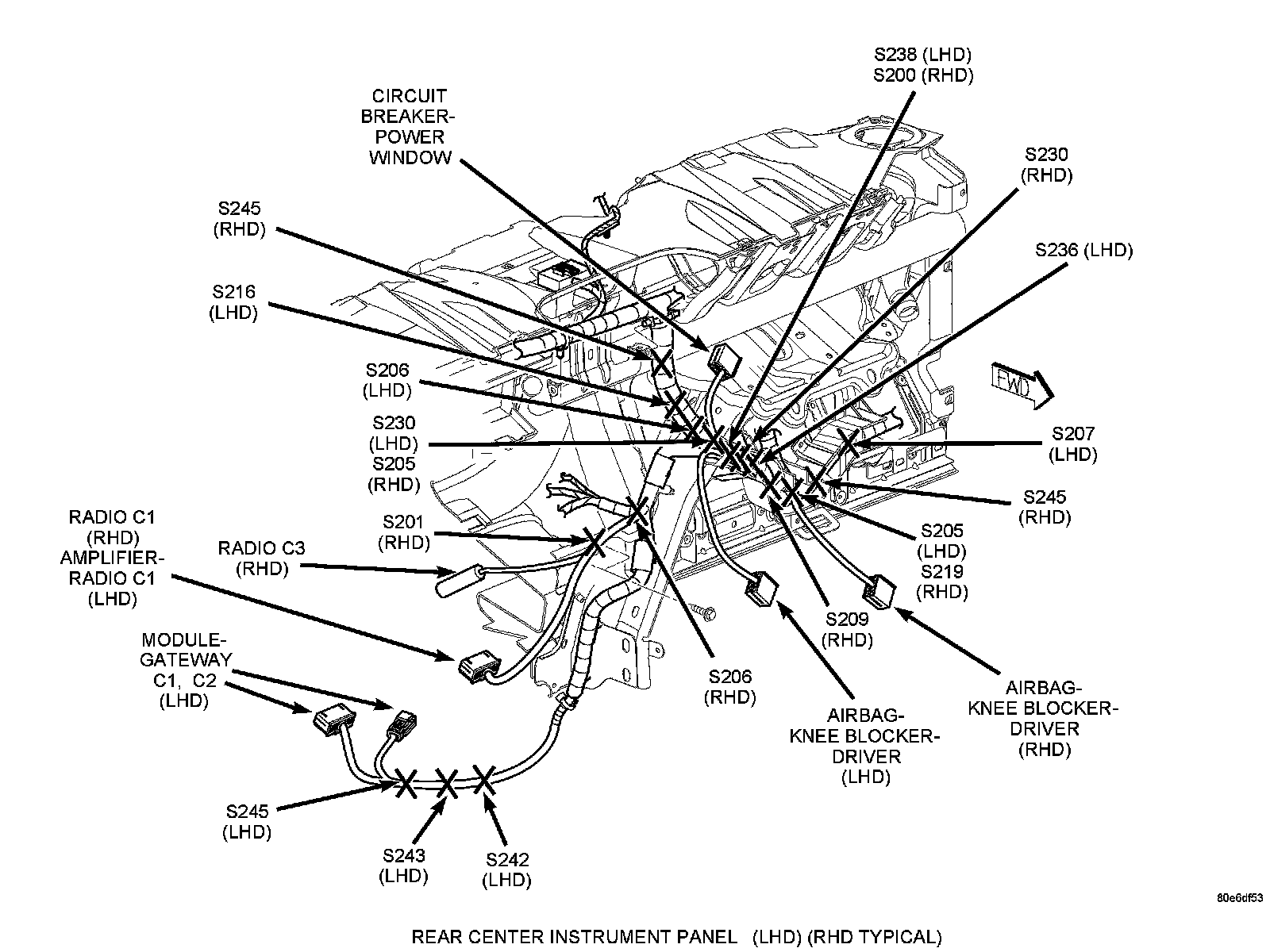

Component Location - 32
