Cruise Control Servo

Component ID: 346
Component : SERVO-SPEED CONTROL

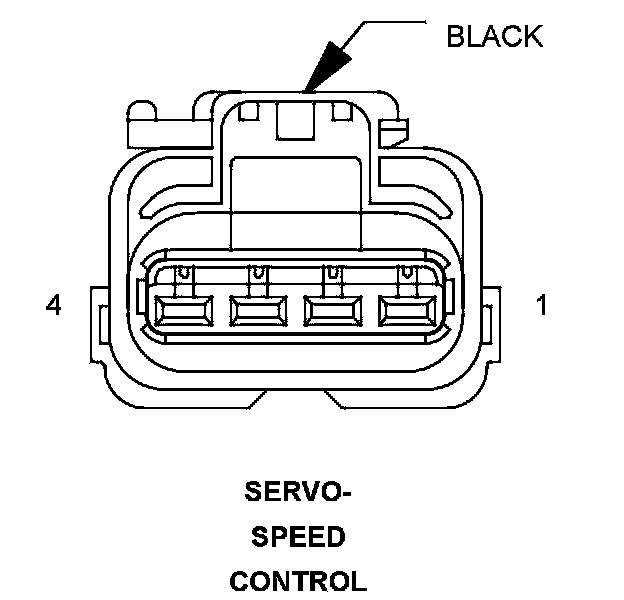

Connector:
Name : SERVO-SPEED CONTROL
Color : BLACK
# of pins : 4




Pin Circuit Description
1 V36 20VT/YL S/C VACUUM CONTROL
2 V35 20VT/OR S/C VENT CONTROL
3 V397 20VT/BR S/C BRAKE SWITCH OUTPUT
4 Z902 20BK GROUND

Component Location - 1




Component Location - 8
