Heated Glass Element

Component ID: 16
Component : BACKLITE-ELECTRIC HEATED

Connector:
Name : BACKLITE-ELECTRIC HEATED
Color :
# of pins : 1
Qualifier : (GROUND)




Pin Circuit Description
1 Z908 12BK GROUND

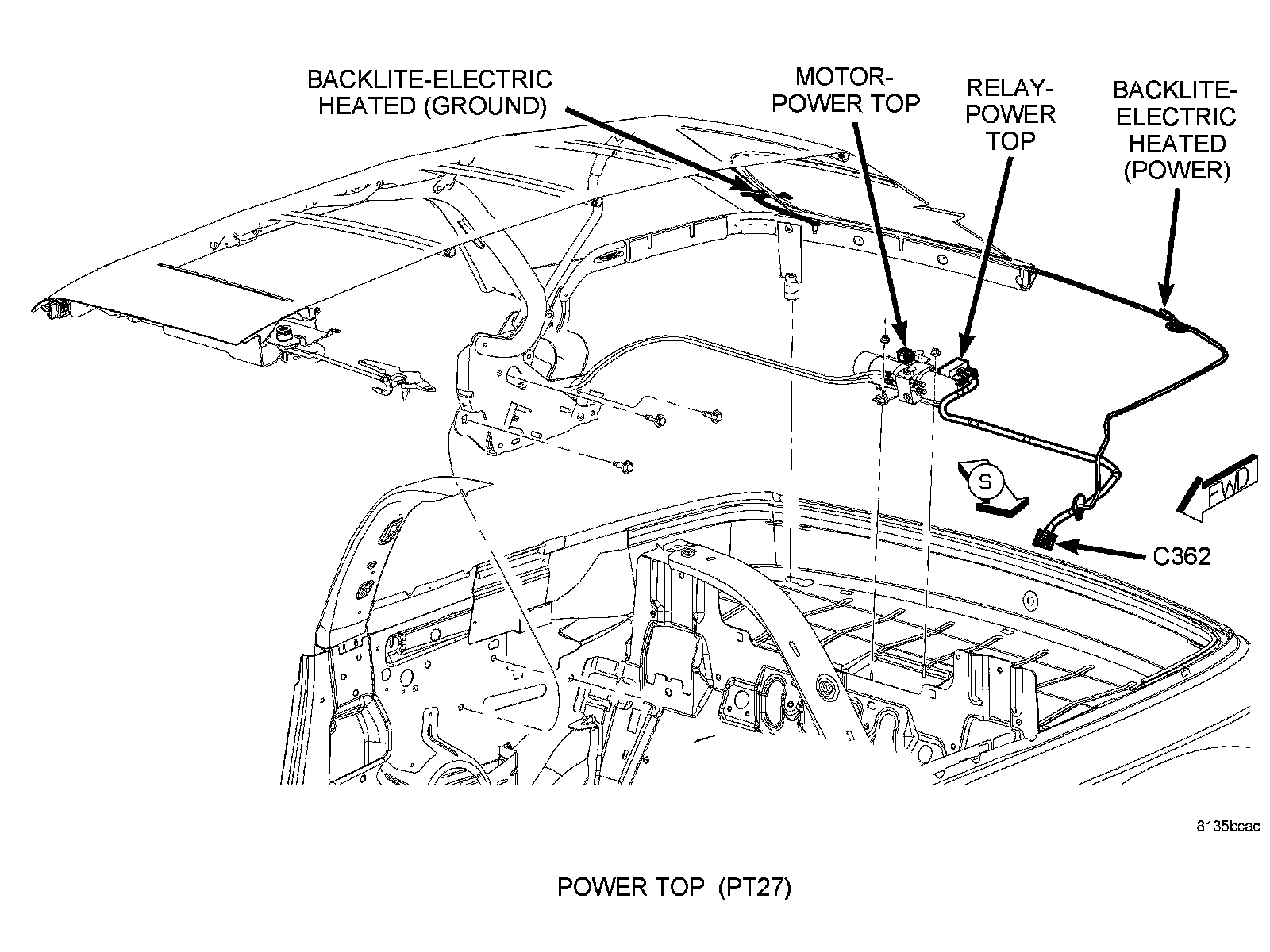

Component Location - 68

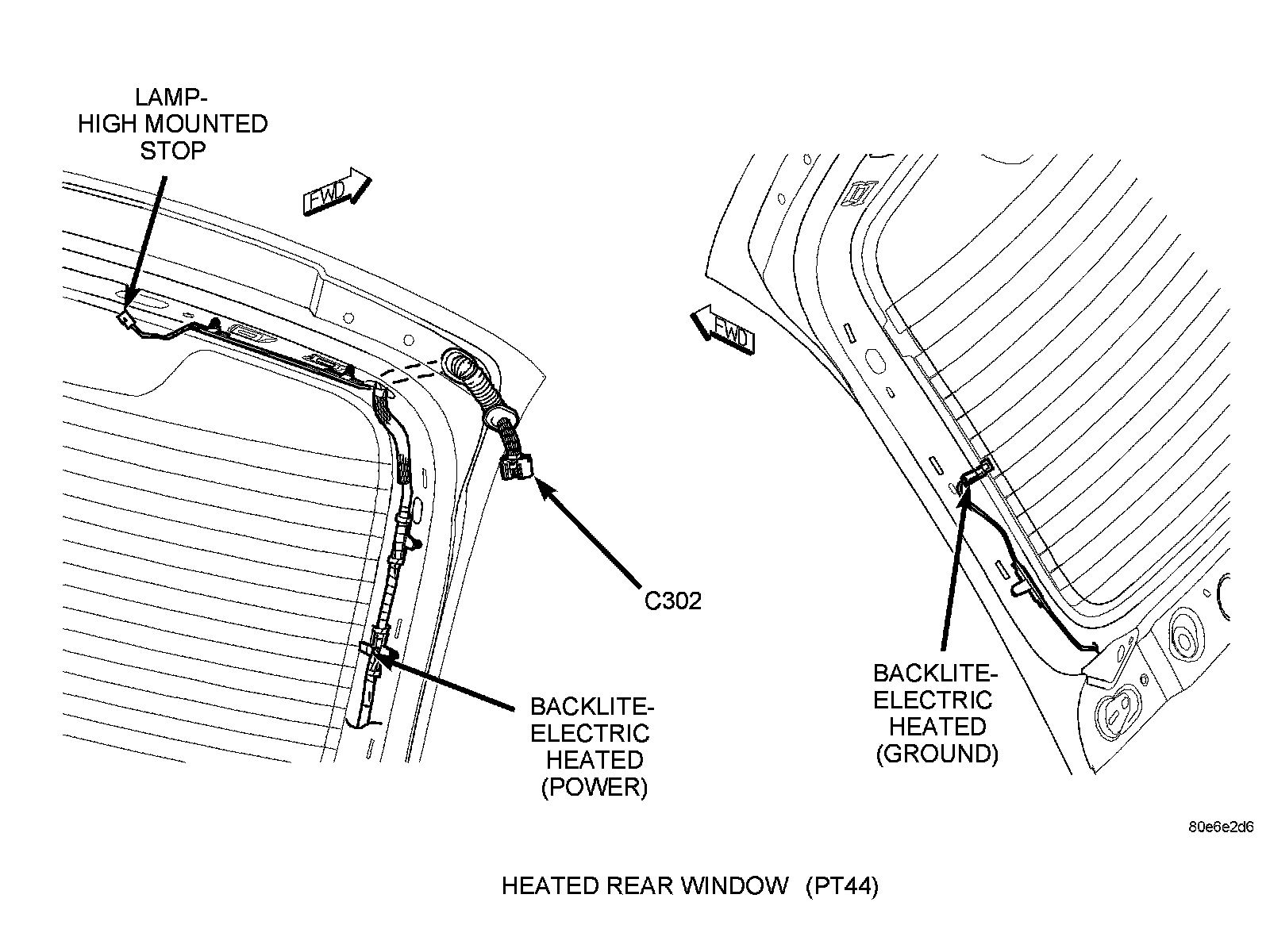

Component Location - 64






Connector:
Name : BACKLITE-ELECTRIC HEATED
Color :
# of pins : 1
Qualifier : (POWER)




Pin Circuit Description
1 C515 12LB/OR REAR WINDOW DEFOGGER CONTROL OUTPUT

Component Location - 68




Component Location - 64
