Sensor-Oxygen-Rear

Component ID: 329

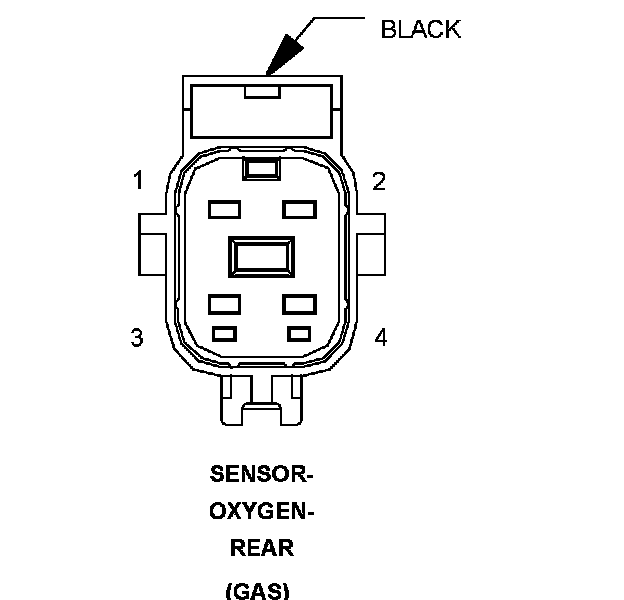

Component : SENSOR-OXYGEN-REAR

Connector:
Name : SENSOR-OXYGEN-REAR
Color : BLACK
# of pins : 4
Qualifier : (GAS)




Pin Circuit Description
1 K299 18BR/VT O2 1/2 HEATER CONTROL
Pin Circuit Description
1 Z904 18BK GROUND
2 K342 18DG/OR FUSED ASD RELAY OUTPUT
2 K299 18BR/VT O2 1/2 HEATER CONTROL
3 K904 20DB/DG O2 1/2 GROUND
3 K902 20DB/DG O2 RETURN
4 K141 20TN/WT O2 1/2 SIGNAL

Component Location - 21




Component Location - 25




Component Location - 26




Component Location - 24
