Module-Electronic Overhead

Component ID: 162
Component : MODULE-ELECTRONIC OVERHEAD

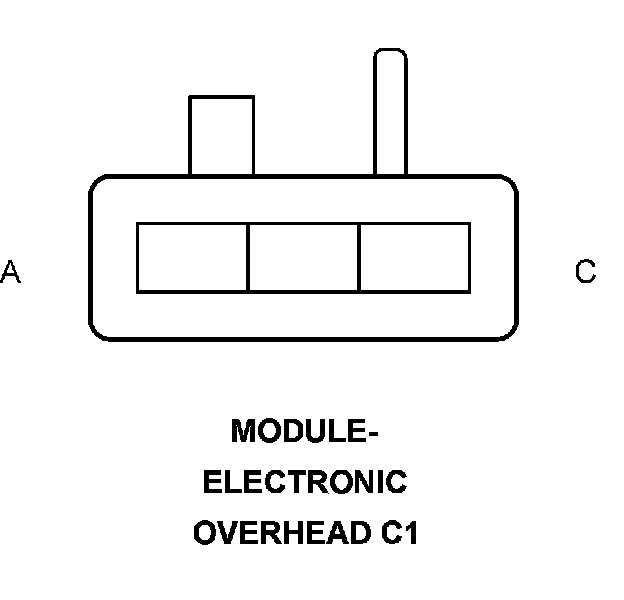

Connector:
Name : MODULE-ELECTRONIC OVERHEAD C1
Color :
# of pins : 3




A M27 20YL/LB READING/RAIL LAMPS DRIVER
B Z906 20BK GROUND
C M24 20YL/WT COURTESY LAMPS DRIVER

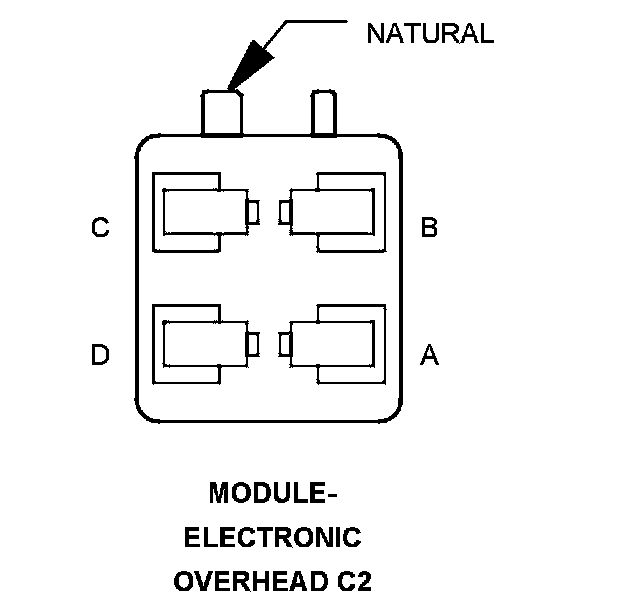

Connector:
Name : MODULE-ELECTRONIC OVERHEAD C2
Color : NATURAL
# of pins : 4




A Q4 20OR/YL SUNROOF VENT SWITCH SENSE
B Q6 20OR/LG SUNROOF SWITCH SUPPLY
C Q3 20OR/TN SUNROOF OPEN SWITCH SENSE
D Q5 20OR/LB SUNROOF CLOSE SWITCH SENSE
