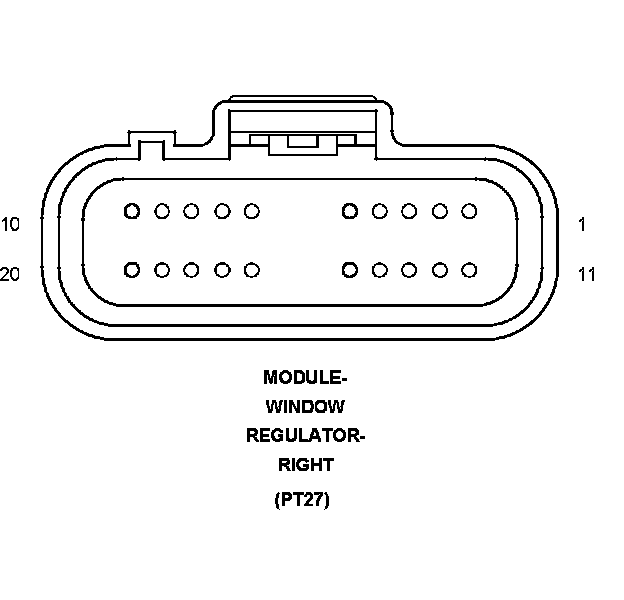

Module-Window Regulator-Right

Component ID: 179
Component : MODULE-WINDOW REGULATOR-RIGHT

Connector:
Name : MODULE-WINDOW REGULATOR-RIGHT
Color :
# of pins : 20
Qualifier : (PT27)




Pin Circuit Description
1 Z906 16BK GROUND
2 - -
3 - -
4 - -
5 Z909 20BK GROUND
6 Q14 16OR/GY RIGHT REAR WINDOW DRIVER (UP)
7 Q24 16OR/DG RIGHT REAR WINDOW DRIVER (DOWN)
8 - -
9 - -
10 A937 16RD FUSED B(+)
11 Z906 16BK GROUND
12 - -
13 G74 20TN/RD RIGHT FRONT DOOR AJAR SWITCH SENSE
14 Q58 20OR/YL RIGHT WINDOW DROP SWITCH SENSE
15 D55 20WT/OR CAN B BUS (+)
16 D54 20WT CAN B BUS (-)
17 - -
18 - -
19 - -
20 A937 16RD FUSED B(+)

Component Location - 45
