Switch-Power Window-Left Rear

Component ID: 385

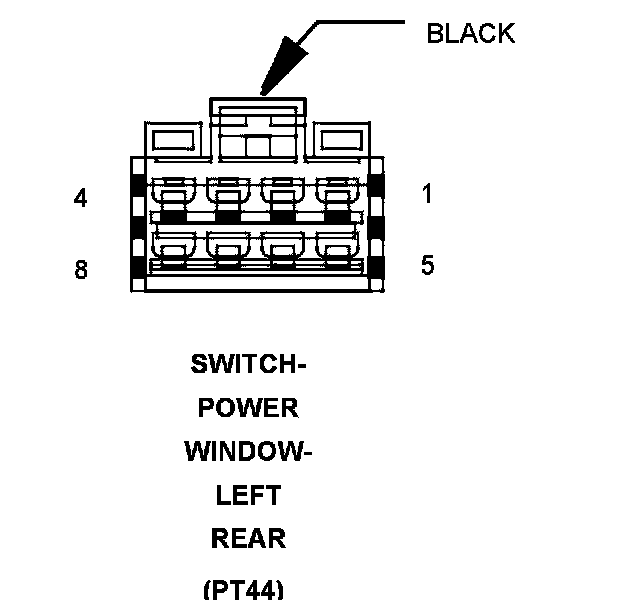

Component : SWITCH-POWER WINDOW-LEFT REAR

Connector:
Name : SWITCH-POWER WINDOW-LEFT REAR
Color : BLACK
# of pins : 8
Qualifier : (PT44)




Pin Circuit Description
1 - -
2 Q411 14OR/WT LEFT REAR WINDOW DRIVER (UP)
3 Q611 14OR/GY LEFT REAR WINDOW DRIVER (DOWN)
4 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
5 Q111 14TN/YL LEFT REAR WINDOW DRIVER (UP)
6 - -
7 - -
8 Q211 14TN/LB LEFT REAR WINDOW DRIVER (DOWN)

Component Location - 42
