Motor-Wiper-Rear

Component ID: 194
Component : MOTOR-WIPER-REAR

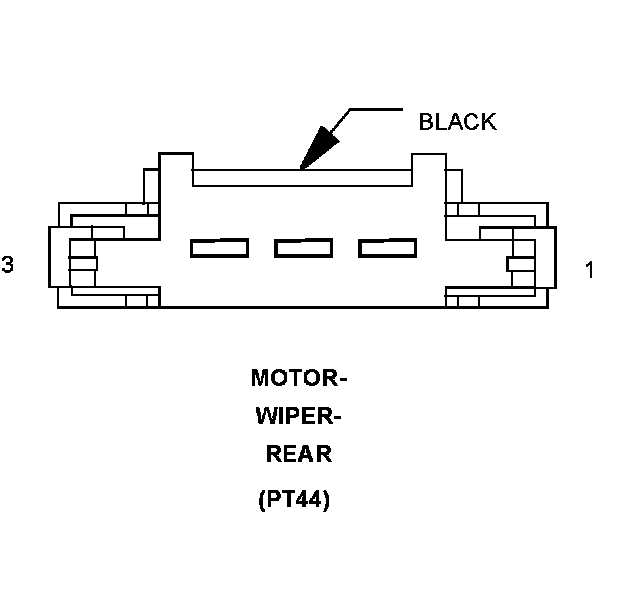

Connector:
Name : MOTOR-WIPER-REAR
Color : BLACK
# of pins : 3
Qualifier : (PT44)




Pin Circuit Description
1 W13 18BR/LG REAR WIPER MOTOR CONTROL
2 F981 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
3 Z908 18BK GROUND

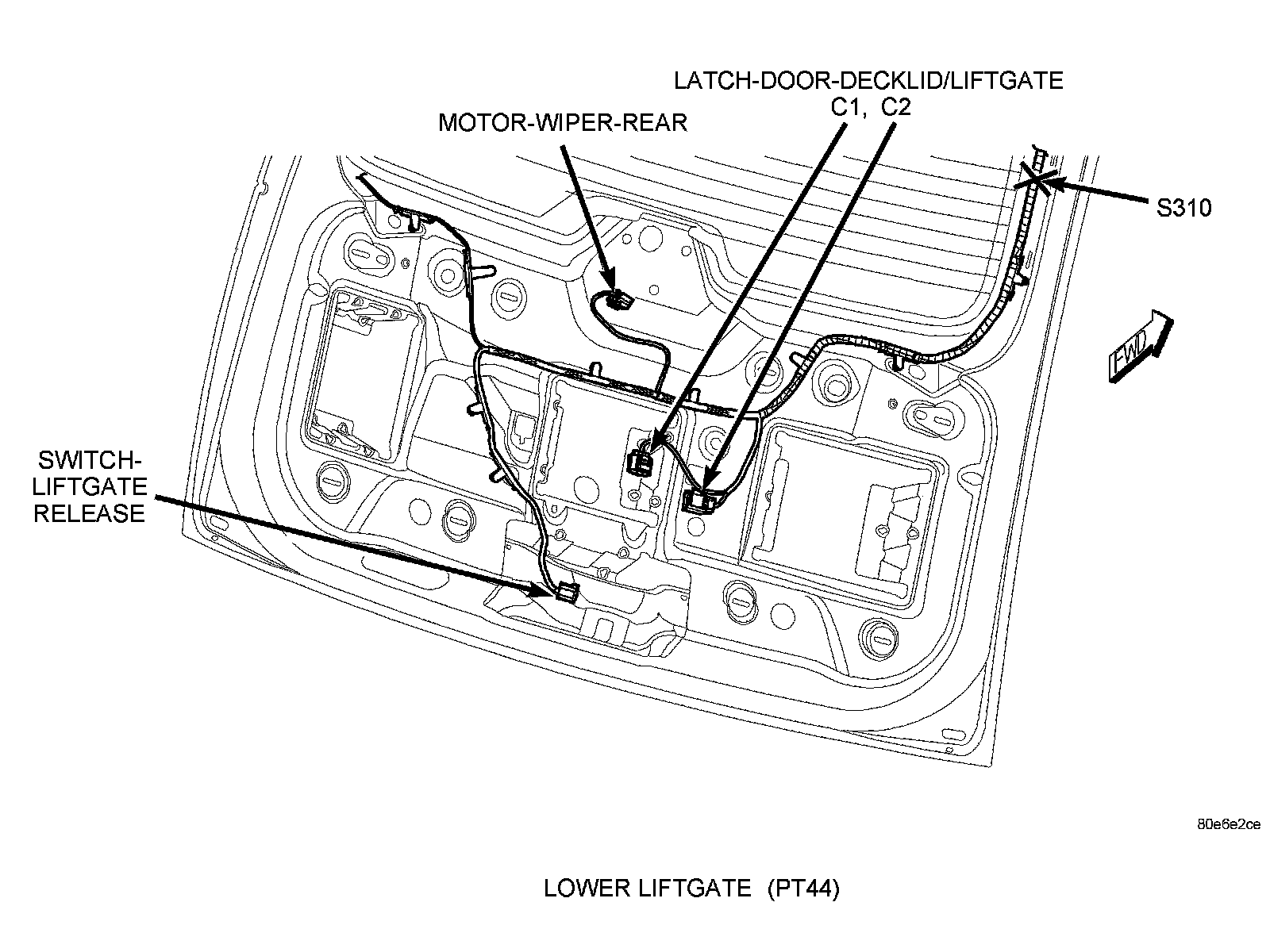

Component Location - 66
