Data Link Connector: Locations

Component ID: 55

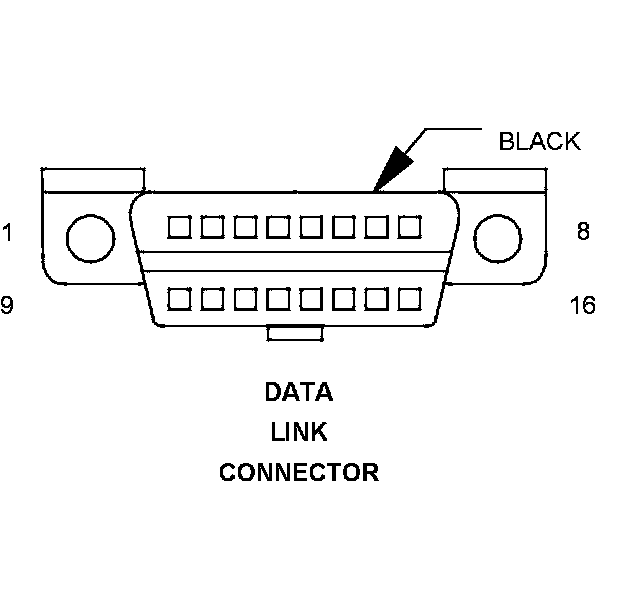

Component : DATA LINK CONNECTOR

Connector:
Name : DATA LINK CONNECTOR
Color : BLACK
# of pins : 16




Pin Circuit Description
1 - -
2 D25 20WT/VT PCI BUS
3 - -
4 Z905 18BK GROUND
5 Z905 18BK GROUND
6 D72 20WT/LB DIAGNOSTIC CAN C (+)
7 D223 20PK SCI TRANSMIT (PCM)
8 - -
9 - -
10 - -
11 - -
12 D123 20LG SCI RECEIVE (PCM)
13 - -
14 D71 20WT/DB DIAGNOSTIC CAN C (-)
15 - -
16 A933 18RD FUSED B(+)

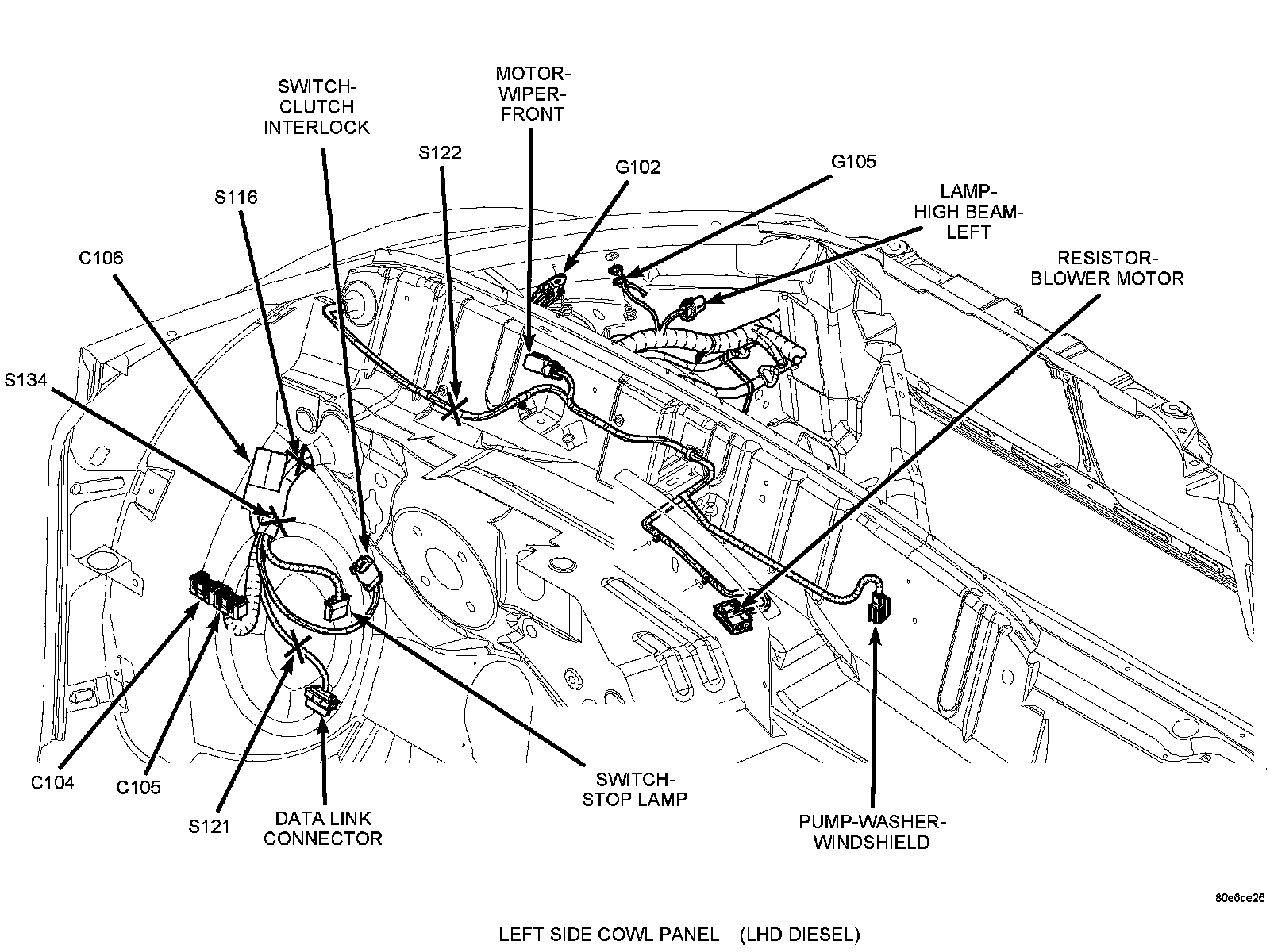

Component Location - 11

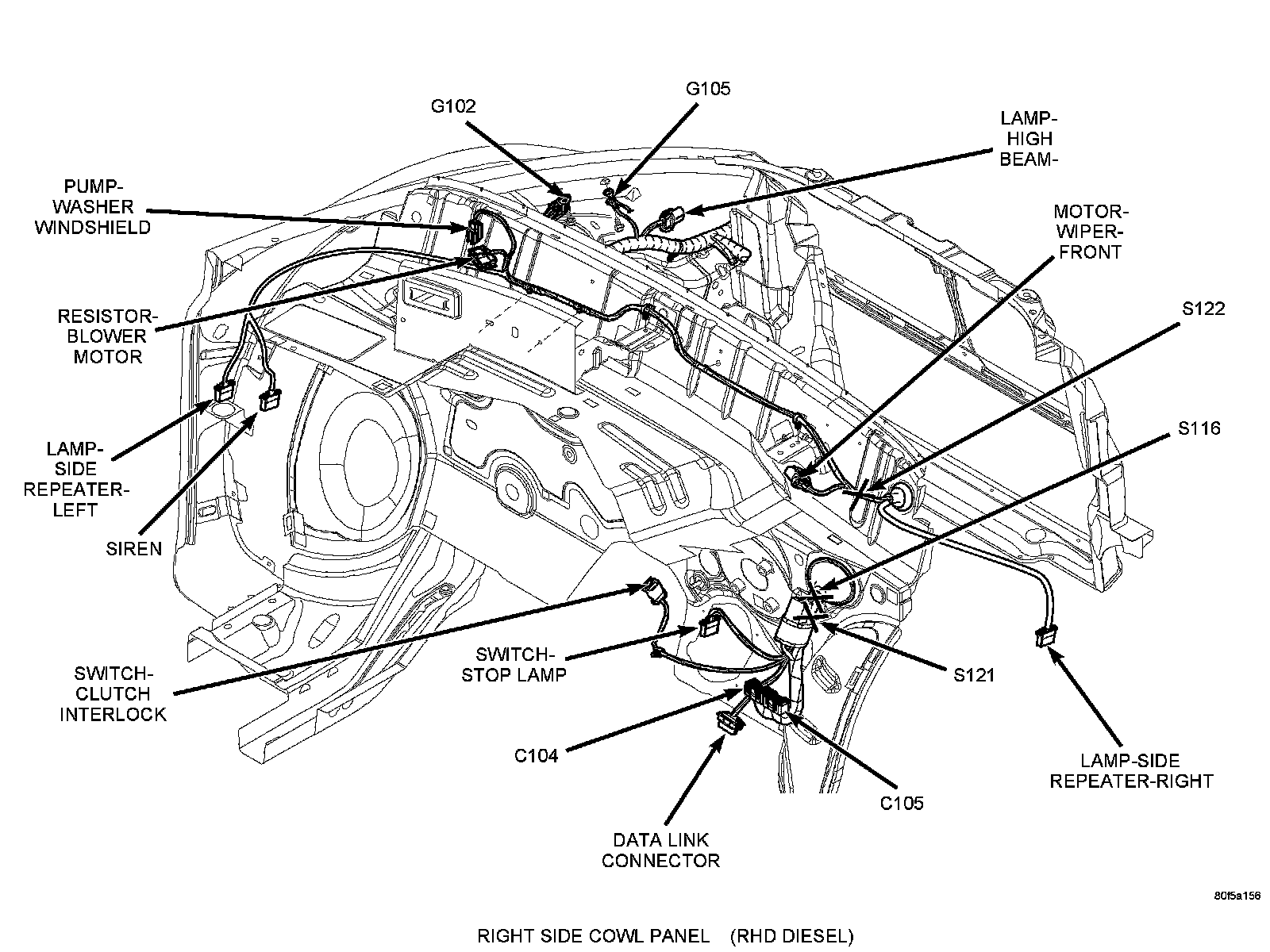

Component Location - 12

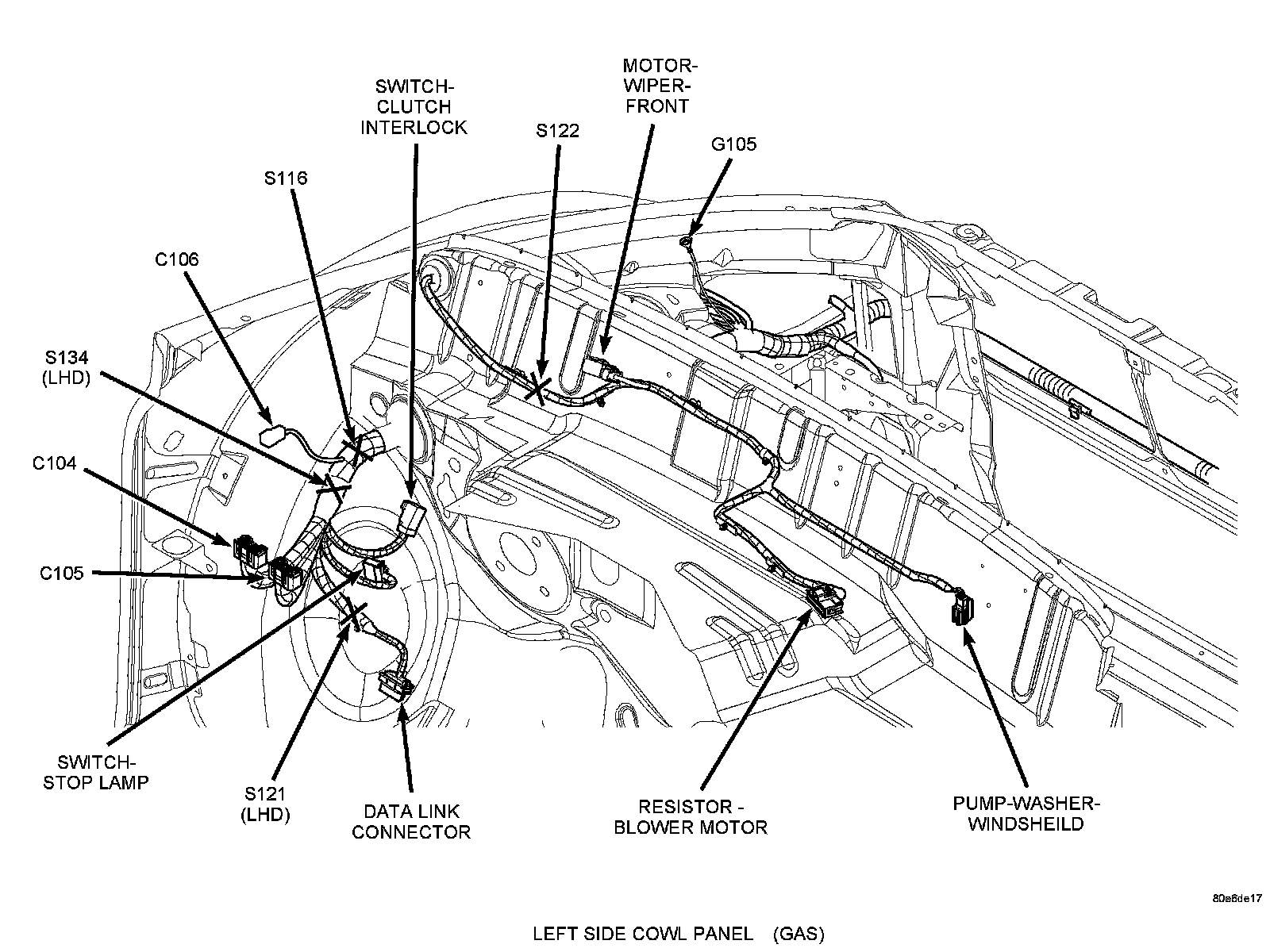

Component Location - 14
