Main Relay (Computer/Fuel System): Locations

Component ID: 202
Component : RELAY-AUTO SHUT DOWN

Connector:

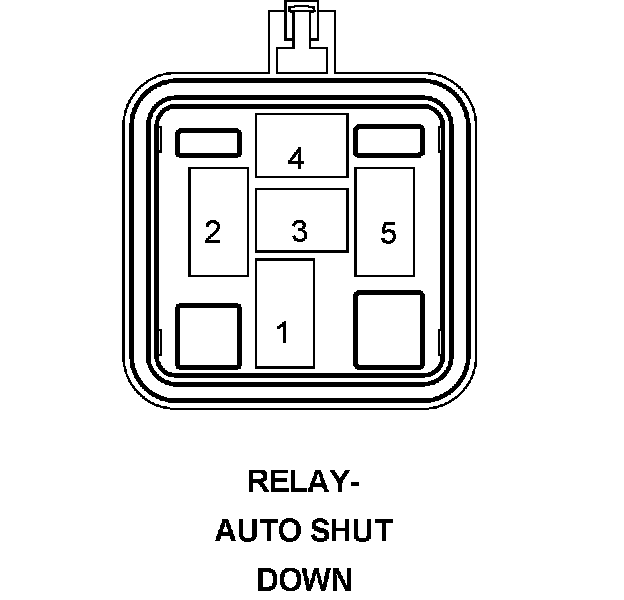

Name : RELAY-AUTO SHUT DOWN
Color :
# of pins : 0




Pin Circuit Description
1 A14 12RD/YL FUSED B(+)
2 K334 20BR ASD RELAY CONTROL
3 - -
4 K542 12BR ASD RELAY OUTPUT
5 A14 12RD/YL FUSED B(+)

Component Location - 1




Component Location - 13
