Throttle Position Sensor: Diagrams

Component ID: 339
Component : SENSOR-THROTTLE POSITION

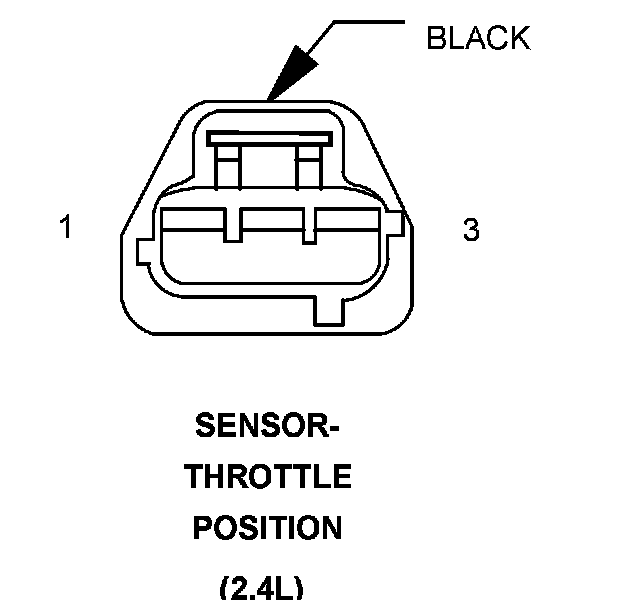

Connector:
Name : SENSOR-THROTTLE POSITION
Color : BLACK
# of pins : 3
Qualifier : (2.4L)




Pin Circuit Description
1 F855 20OR 5 VOLT SUPPLY
2 K22 20OR/DB TP SIGNAL
3 K900 20BK/LB SENSOR GROUND
3 K900 20OR SENSOR GROUND

Component Location - 21




Component Location - 23
