Transmission Position Sensor/Switch: Locations

Component ID: 340
Component : SENSOR-TRANSMISSION RANGE

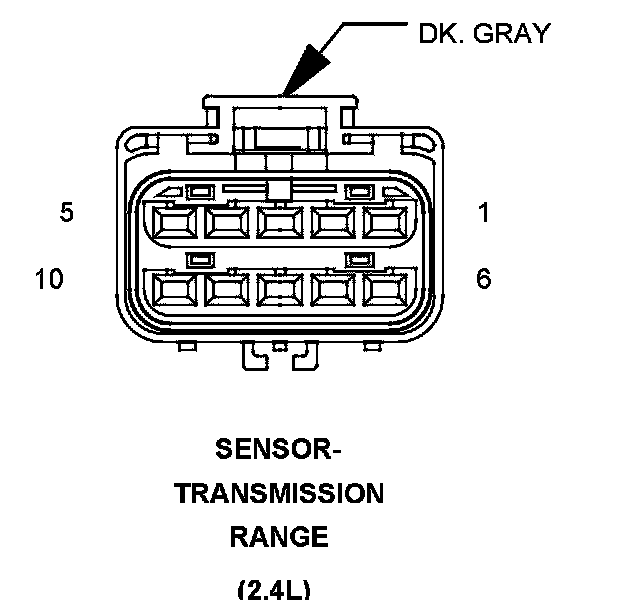

Connector:
Name : SENSOR-TRANSMISSION RANGE
Color : DK. GRAY
# of pins : 10
Qualifier : (2.4L)




Pin Circuit Description
1 - -
2 - -
3 T13 18DB/BK SPEED SENSOR GROUND
4 T54 18VT/PK TRANSMISSION TEMPERATURE SIGNAL
5 - -
6 - -
7 T1 18LG/BK TRS T1 SIGNAL
8 T3 18VT TRS T3 SIGNAL
9 T42 18VT/WT TRS T42 SIGNAL
10 T41 18BK/WT TRS T41 SIGNAL

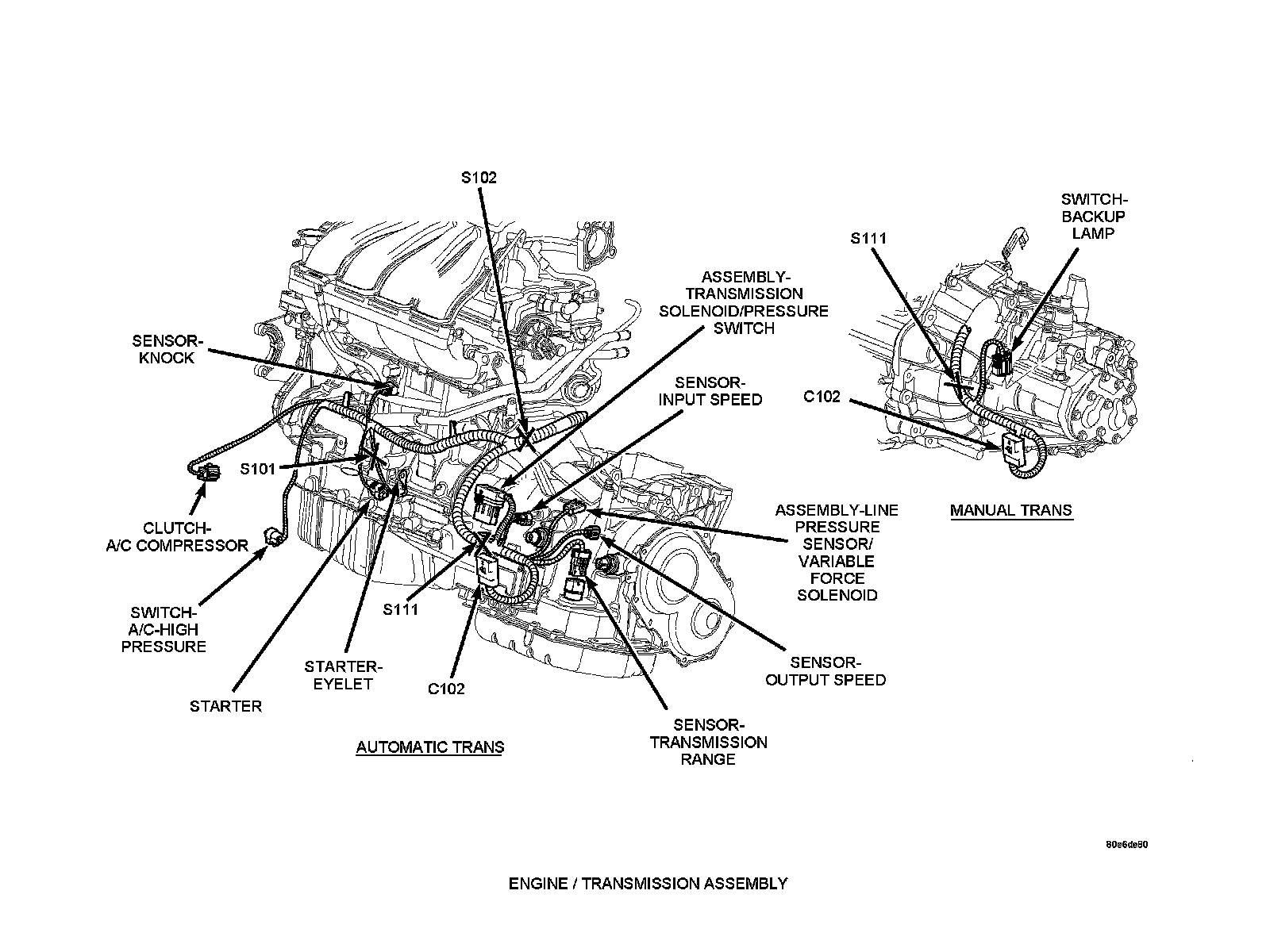

Component Location - 20




Component Location - 23
