Ignition Switch: Locations

Component ID: 379
Component : SWITCH-IGNITION

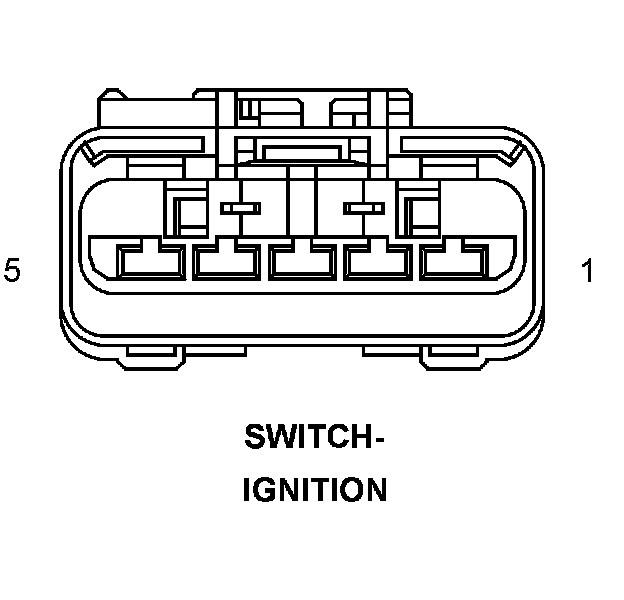

Connector:
Name : SWITCH-IGNITION
Color :
# of pins : 5




Pin Circuit Description
1 G900 20VT/OR IGNITION SWITCH SENSE RETURN
2 G20 20VT/BR IGNITION SWITCH SENSE
3 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
4 F961 20PK/LB IGNITION SWITCH OUTPUT (START)
5 A952 20RD FUSED B(+)

Component Location - 27
