Specifications - Firing Order: 4.0L

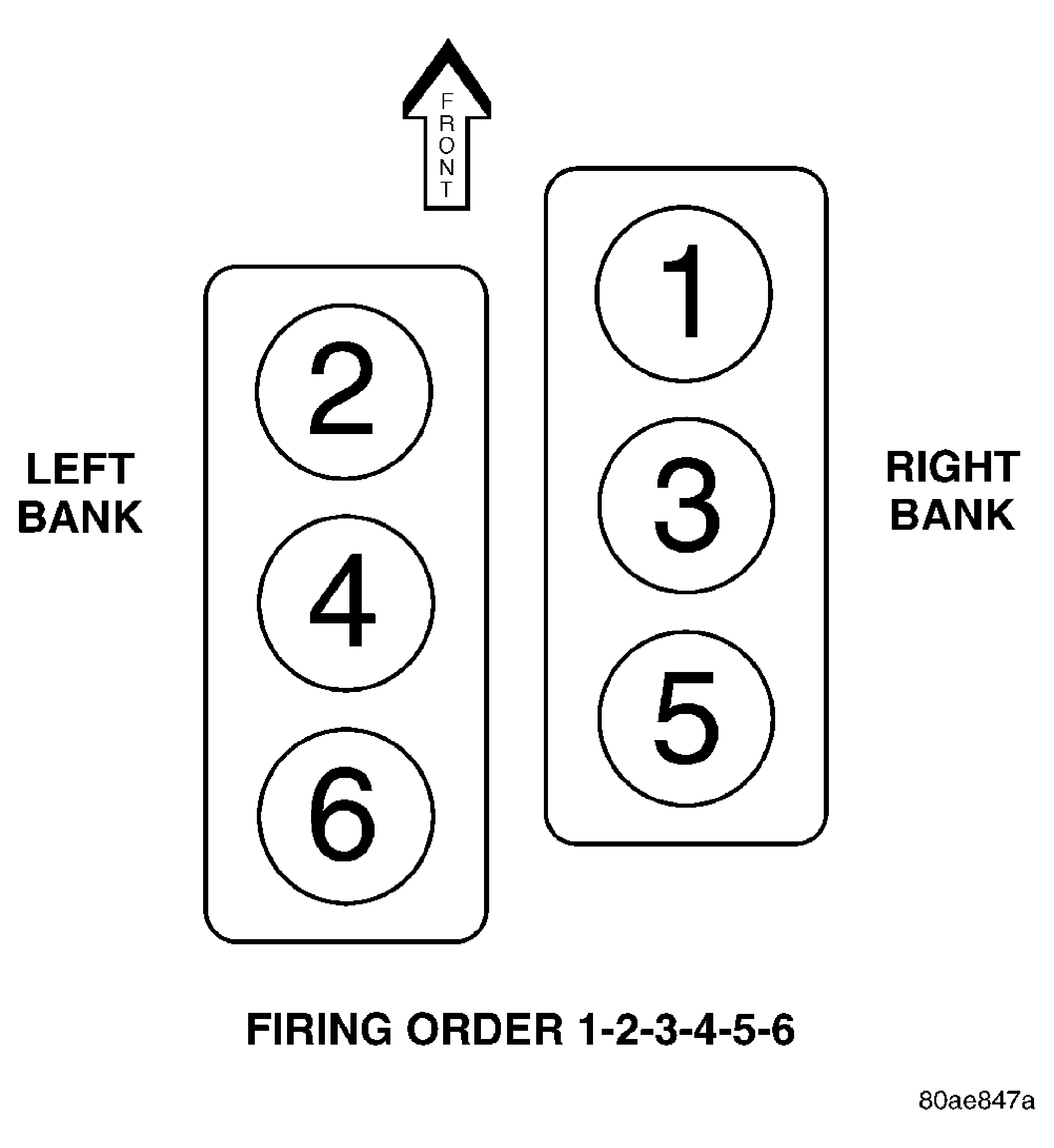

Fig 1: Cylinder Numbering & Firing Order
Courtesy of CHRYSLER LLC
The firing order is 1-2-3-4-5-6.
Courtesy of CHRYSLER LLC
