Memory/Heated Seat Adjustable Pedal Module - Removal

REMOVAL

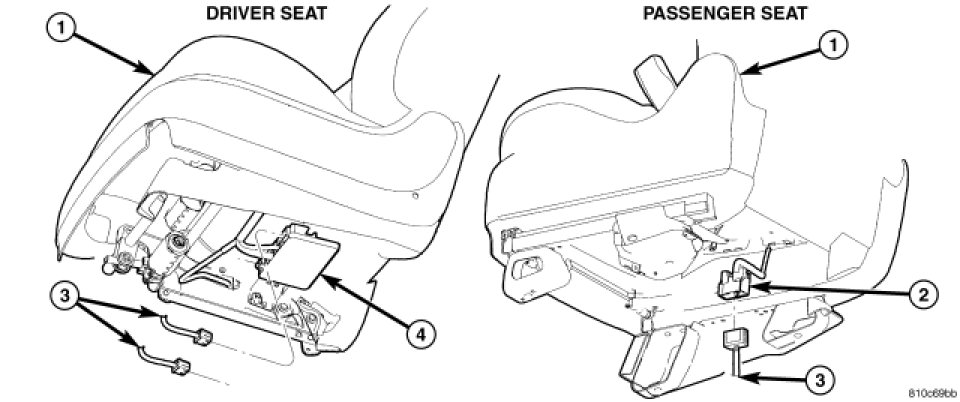

1. Position the drivers seat (1) as far upward and rearward as possible.
2. Disconnect and isolate the battery negative cable.
3. Remove the Memory Heated Seat Adjustable Pedal Module (MHSAPM) (4) attaching screws.
4. Disconnect the MHSAPM electrical connectors (3).
5. Remove the MHSAPM from under the drivers seat.
