Installation

INSTALLATION

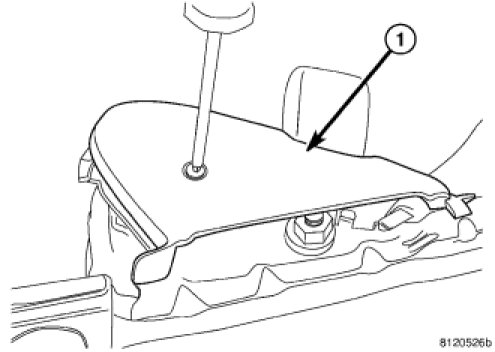

1. Place inboard pivot shield into position.
2. Install inboard pivot drive shield screw.
3. Align load floor panel and push pins fasteners with holes in seat frame and press into position.




4. Connect fold flat cable to handle and press handle into position on load floor panel.
5. Install third row seat. Seat - Installation.
6. Install rear floor stowage bin. Installation.
7. Close liftgate.
