Bench-Second Row

INSTALLATION







1. Install the seat to the vehicle.

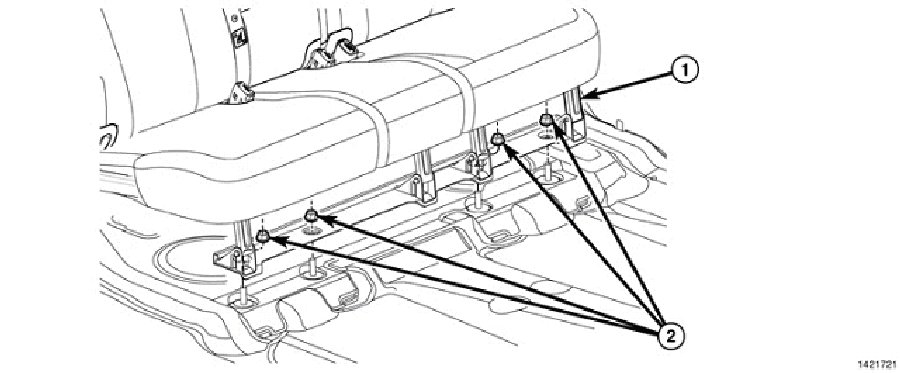

2. Install the seat retaining bolts (2). Tighten to 109 Nm (80 ft.lbs).

3. Install the seat belt mounting bolts (1). Tighten to 81 Nm (60 ft.lbs).

4. Fold the seat cushion down.

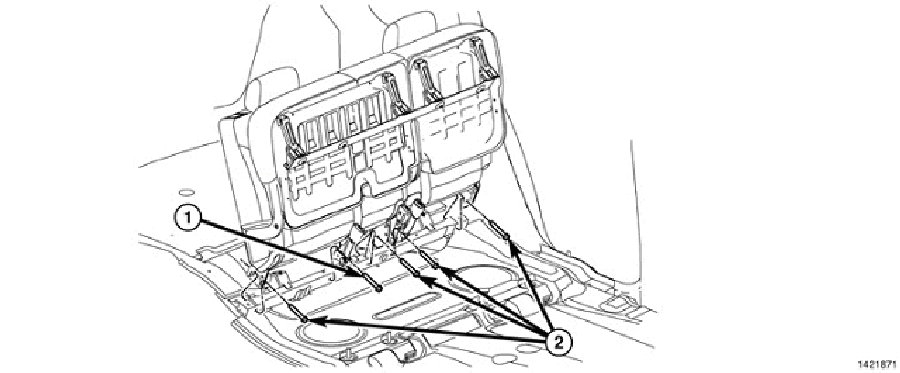

5. Install the four front mounting fasteners (2). Tighten to 49 Nm (36 ft.lbs).

6. Connect the battery negative cable.
