Brake Fluid Level Sensor/Switch

Component ID: 341
Component : SENSOR-BRAKE FLUID LEVEL

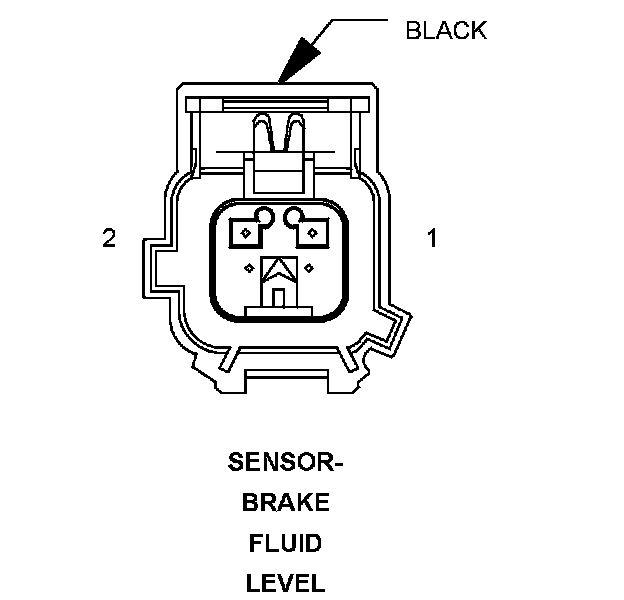

Connector:
Name : SENSOR-BRAKE FLUID LEVEL
Color : BLACK
# of pins : 2




Pin Circuit Description
1 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
2 Z420 20BK/OR GROUND

Component Location - 1
