Compressor Clutch Relay

Component ID: 220

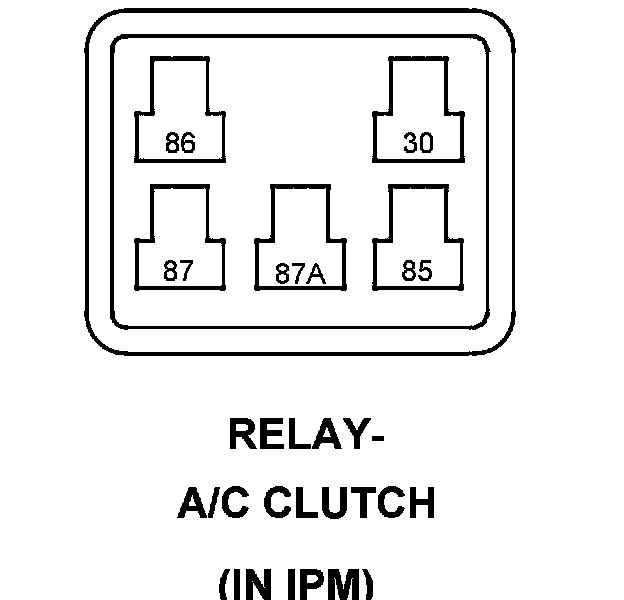

Component : RELAY-A/C CLUTCH

Connector:
Name : RELAY-A/C CLUTCH
Color :
# of pins : 0




30 INTERNAL FUSED B(+)
85 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
86 C13 20LB/OR A/C CLUTCH RELAY CONTROL
87 C3 18DB/YL A/C COMPRESSOR CLUTCH RELAY OUTPUT
87A - -
