Control-A/C-Heater-Rear

Component ID: 70

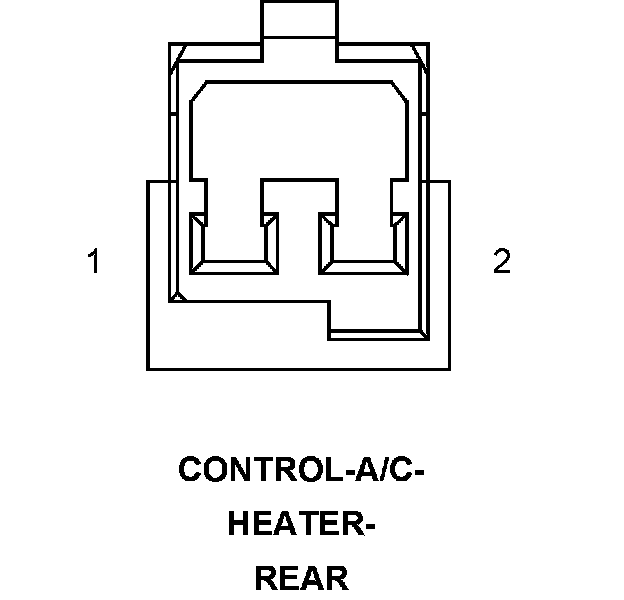

Component : CONTROL-A/C-HEATER-REAR

Connector:
Name : CONTROL-A/C-HEATER-REAR
Color :
# of pins : 2




Pin Circuit Description
1 C153 20DB/BR REAR MODE DOOR DRIVER (A)
2 C53 20LB REAR MODE DOOR DRIVER (B)
