Switch-Speed Control-Right

Component ID: 407
Component : SWITCH-SPEED CONTROL-RIGHT

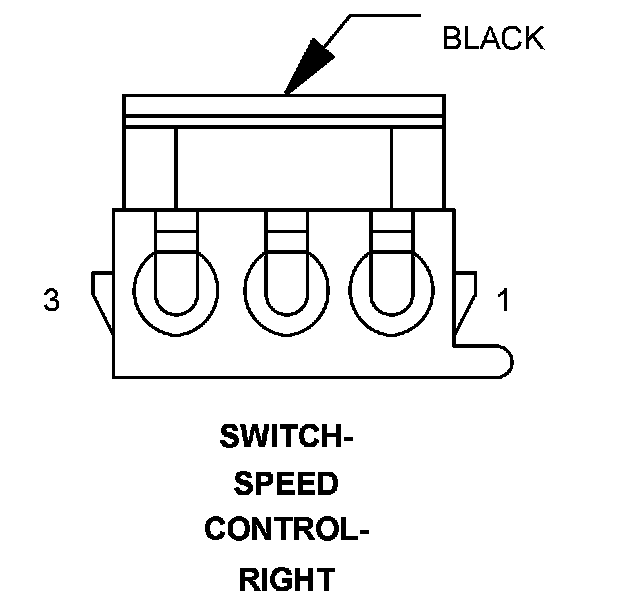

Connector:
Name : SWITCH-SPEED CONTROL-RIGHT
Color : BLACK
# of pins : 3




Pin Circuit Description
1 V38 20VT/OR S/C SIGNAL 2
2 K975 22BR/OR S/C SWITCH GROUND
3 V37 20VT S/C SIGNAL 1

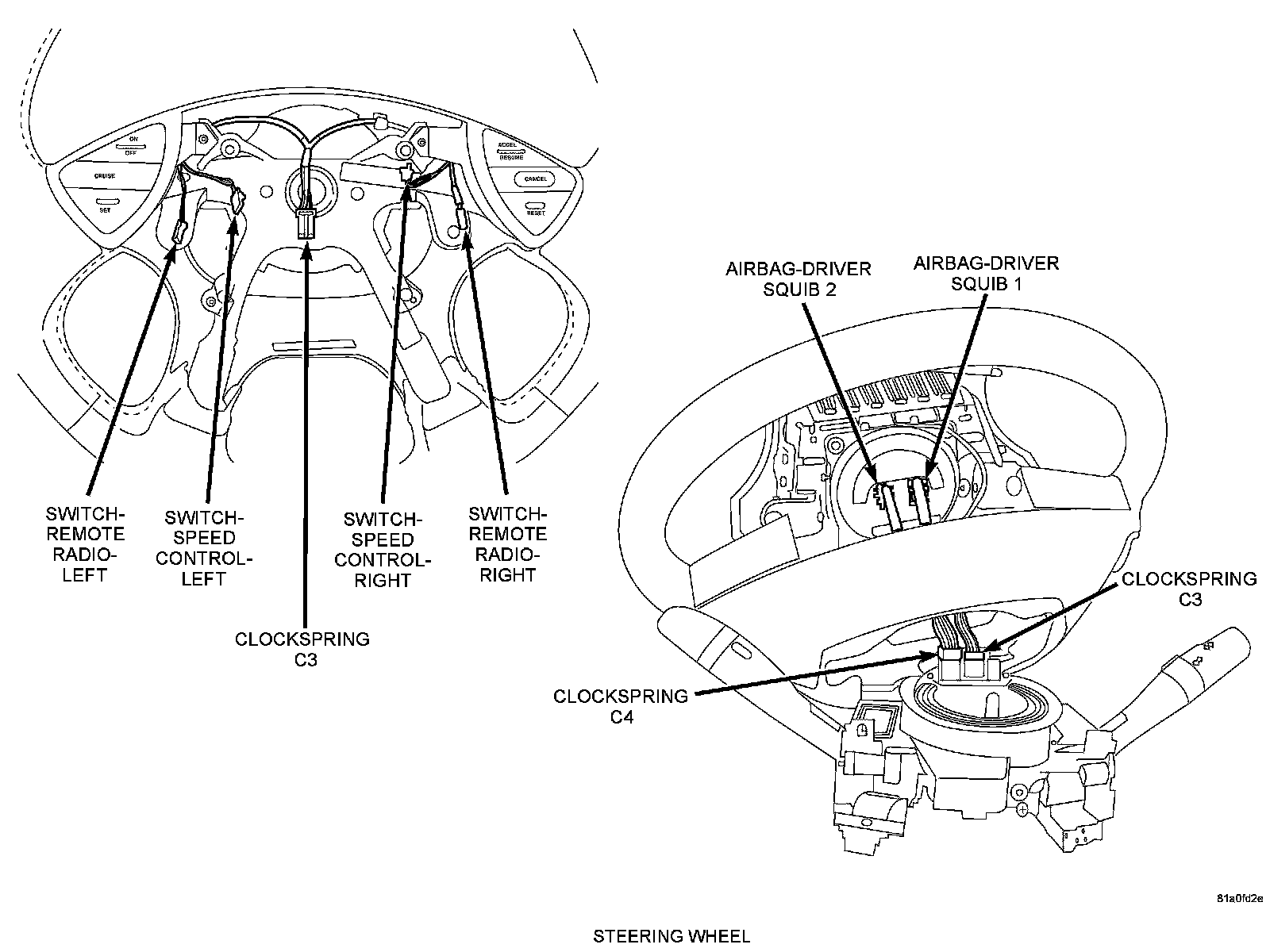

Component Location - 22
