Sensor-Seat Position-Driver Recliner

Component ID: 367
Component : SENSOR-SEAT POSITION-DRIVER RECLINER

Connector:
Name : SENSOR-SEAT POSITION-DRIVER RECLINER
Color : BLACK
# of pins : 3




A P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
B P47 20LG/LB DRIVER SEAT RECLINER POSITION SIGNAL
C P29 20LG/WT DRIVER SEAT POSITION SENSOR 5 VOLT SUPPLY

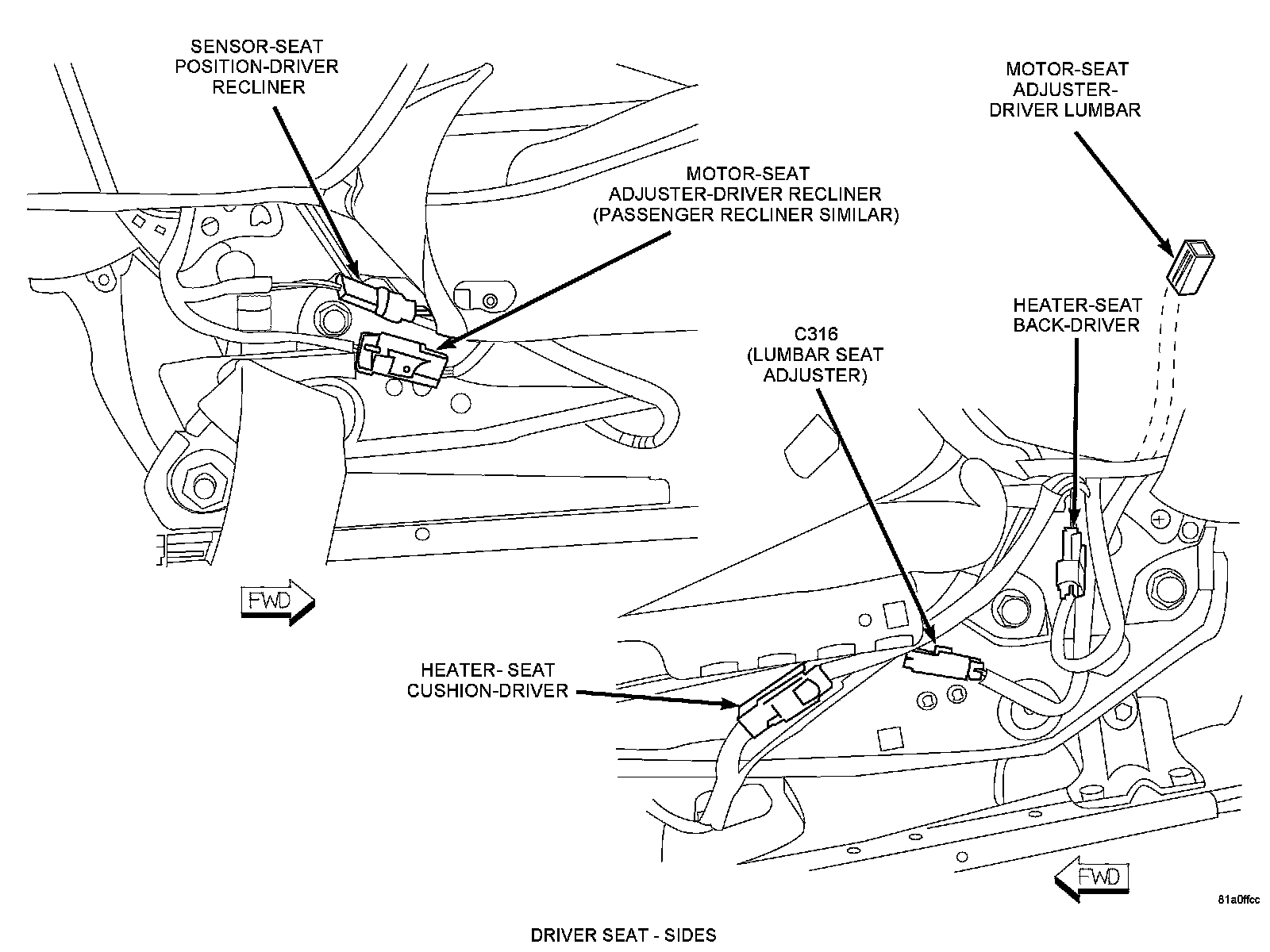

Component Location - 38
