Relay Box

Component ID: 232

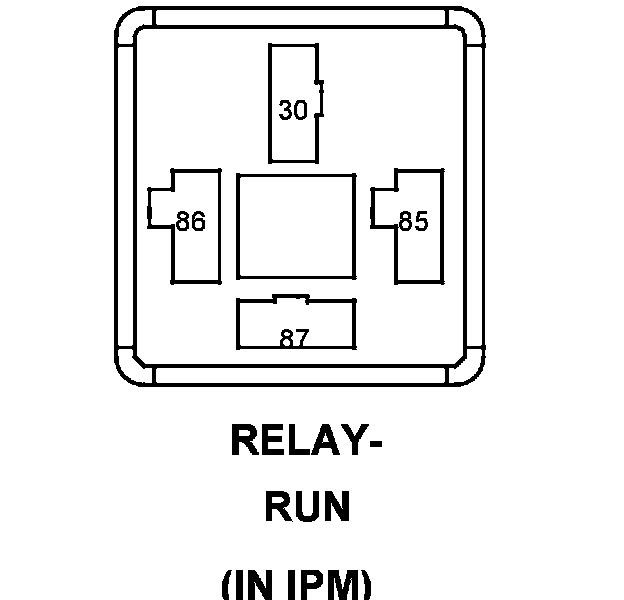

Component : RELAY-RUN

Connector:
Name : RELAY-RUN
Color :
# of pins : 0




30 INTERNAL B(+)
85 INTERNAL B(+)
86 INTERNAL RUN RELAY CONTROL
87 INTERNAL FUSED RUN RELAY OUTPUT
87A - -
