Traction Control Switch

Component ID: 409

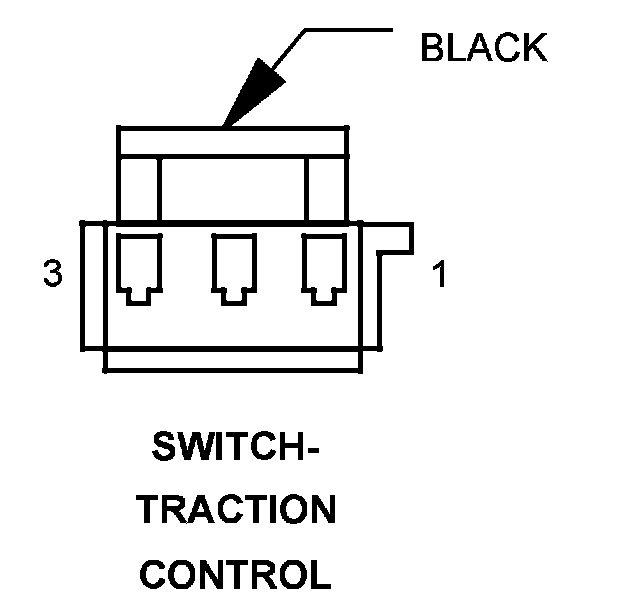

Component : SWITCH-TRACTION CONTROL

Connector:
Name : SWITCH-TRACTION CONTROL
Color : BLACK
# of pins : 3




Pin Circuit Description
1 Z427 20BK/WT GROUND
2 E12 18OR/GY PANEL LAMPS DRIVER
3 B27 20DG/WT TRACTION CONTROL SWITCH SENSE

Component Location - 14




Component Location - 23
