A/C Heater Control - Installation







INSTALLATION

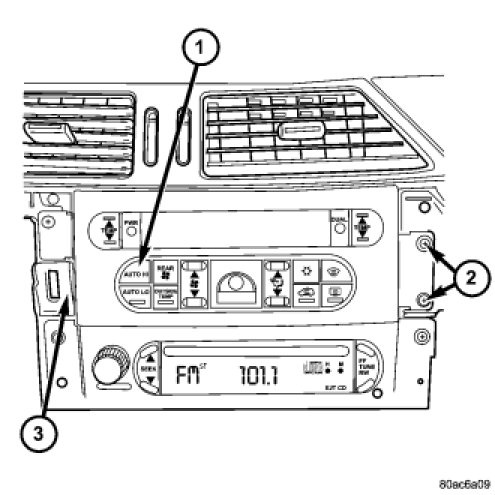

1. Position the A/C-heater control (1) to the instrument panel (3).
2. Connect the two wire harness connectors to the back of the A/C-heater control.
3. Install the A/C-heater control into the instrument panel.
4. Install the three screws (2) that secure the A/C-heater control to the instrument panel. Tighten the screws to 2 Nm (17 in. lbs.).
5. Install the center bezel onto the instrument panel Instrument Panel Center Bezel - Installation.
6. Reconnect the negative battery cable.
7. Calibrate the A/C-heater control Procedures.
