Front Blower Motor Power Module - Description

DESCRIPTION





A blower motor power module is used on this model when equipped with the automatic temperature control (ATC) heating-A/C system. Models equipped with the manual temperature control (MTC) heating-A/C system use a blower motor resistor, instead of the blower motor power module .

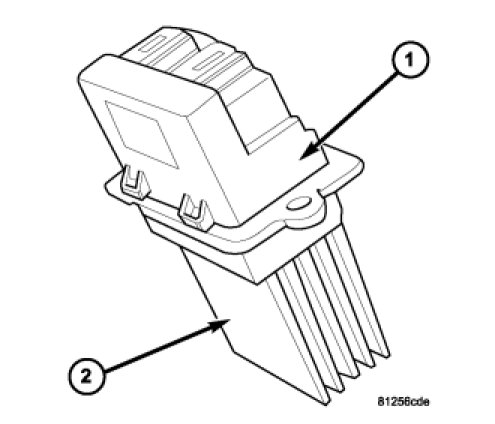

The blower motor power module is mounted to the bottom of the HVAC housing, on the passenger side of the vehicle. The blower motor power module consists of a molded plastic mounting plate with an integral connector receptacle (1). Concealed behind the mounting plate is the power module electronic circuitry and a large finned heat sink (2). The blower motor power module is accessed for service from under the instrument panel.
