Rear Blower Motor Power Module - Installation

INSTALLATION

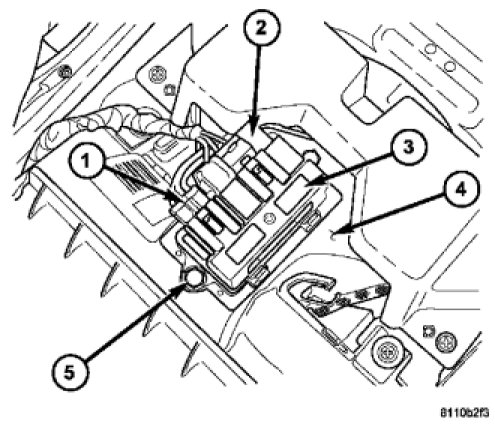

1. Position the rear blower motor power module (3) into the rear blower motor housing (4).
2. Install the two screws (5) that secure the power module to the blower motor housing. Tighten the screws to 2 Nm (17 in. lbs.).
3. Reconnect the blower motor wire harness connector (1) and the body wire harness connector (2) to the power module.
4. Install the front center floor console cover Installation.
5. Reconnect the negative battery cable.
