Installation

INSTALLATION





NOTE: When a replacement IPM is installed in the vehicle, the IOD fuse must be rotated to the "customer" position.

1. Install battery connection and retaining nut. Tighten nut to 28 Nm (250 in. lbs.)
2. Connect the electrical harness connectors to the Integrated Power Module (IPM).

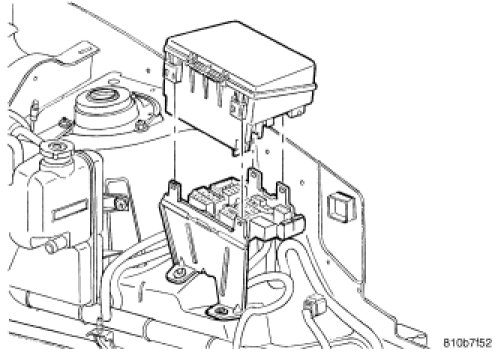

3. Position IPM into place, and lock into position.
4. Install the hood cable retaining clip.
5. Connect battery negative cable.
