Knock Sensor: Locations

Component ID: 351
Component : SENSOR-KNOCK

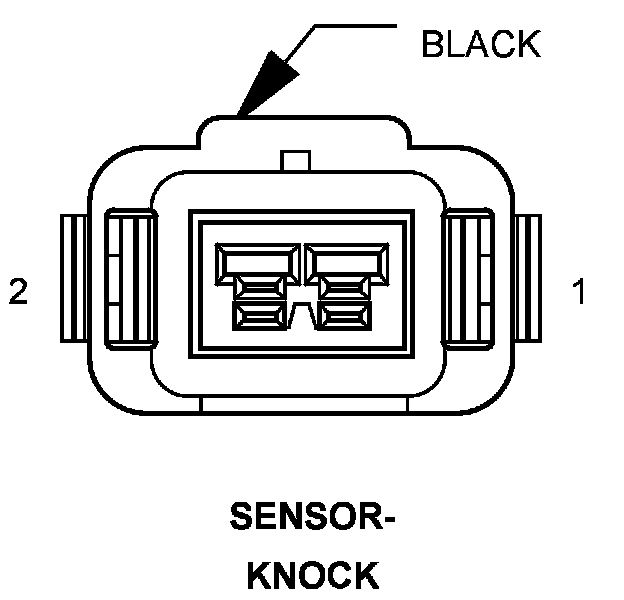

Connector:
Name : SENSOR-KNOCK
Color : BLACK
# of pins : 2




Pin Circuit Description
1 K42 20DB/OR KS SIGNAL
2 K942 20BR/LG KS RETURN

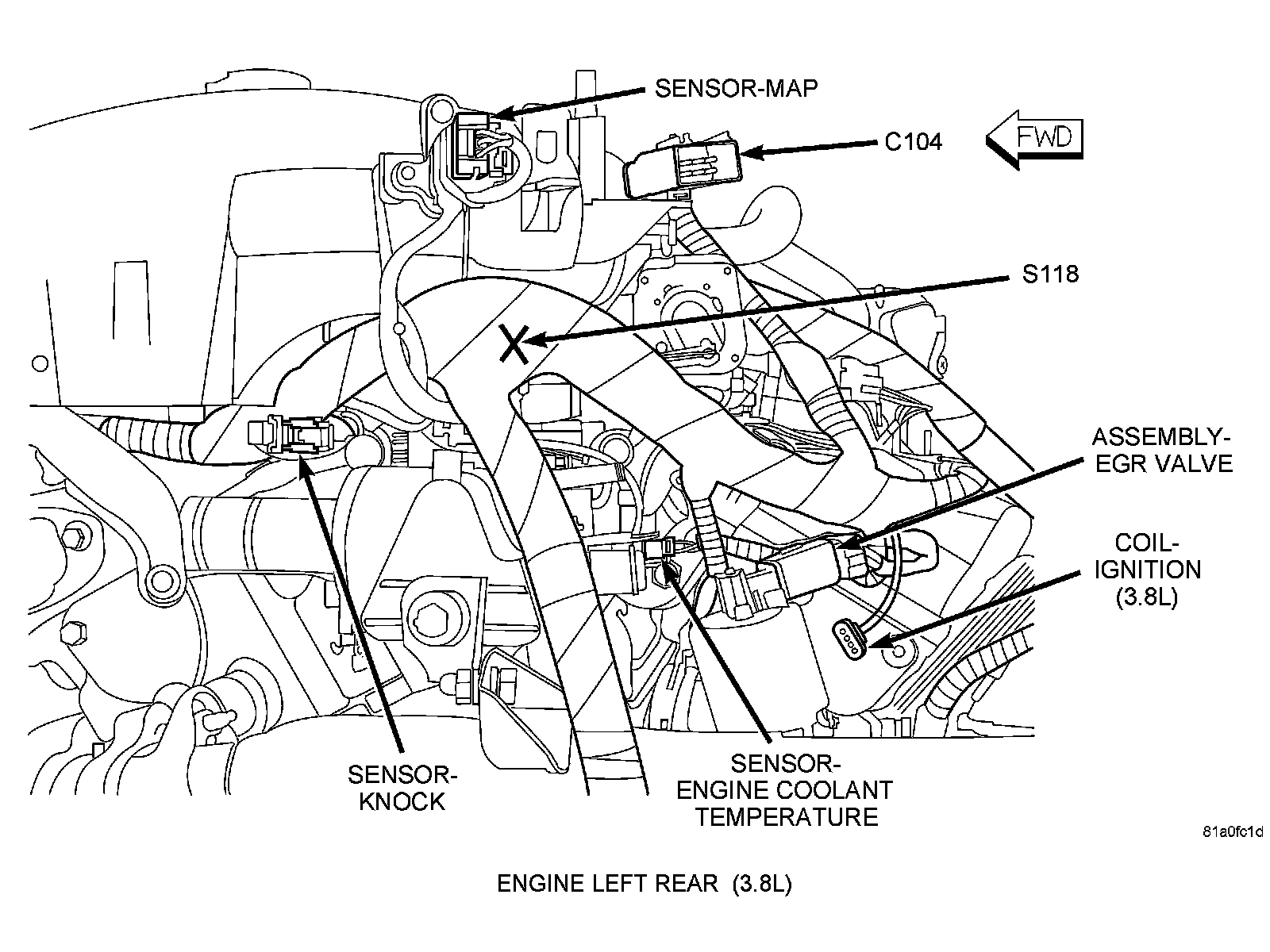

Component Location - 1




Component Location - 10
