Installation

INSTALLATION

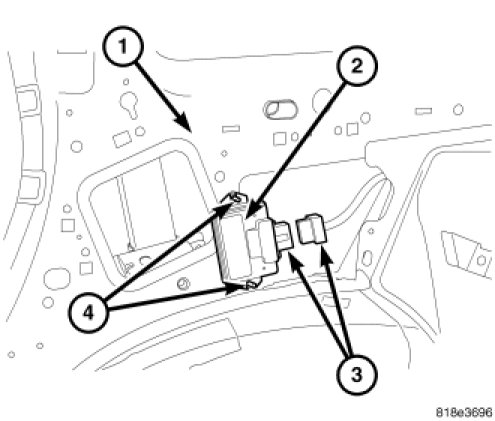

1. Install (AWD) all wheel drive module (2) into mounting studs.
2. Install mounting nuts (4) and tighten to 8 Nm (71 in. lbs.) torque.
3. Install the electrical connector (3).
4. Install the right rear trim panel Console Shifter Bezel - Installation.
