Compressor Clutch

Component ID: 429
Component : SOLENOID-A/C COMPRESSOR

Connector:

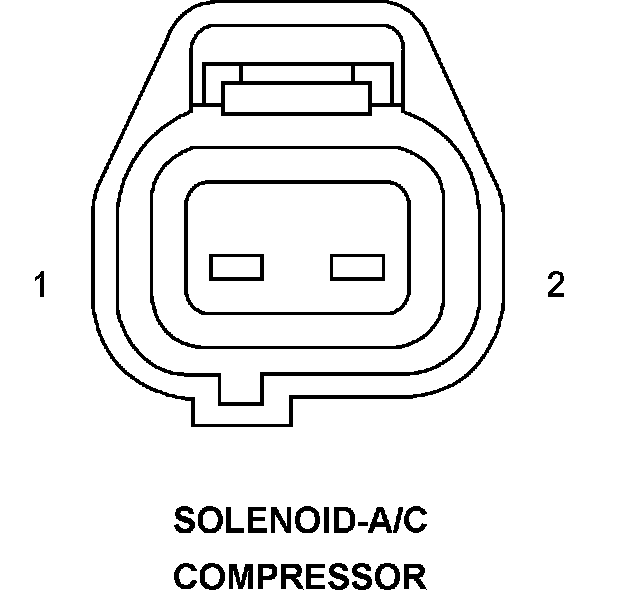

Name : SOLENOID-A/C COMPRESSOR
Color :
# of pins : 2




Pin Circuit Description
1 F343 18BR/YL FUSED MAIN RELAY OUTPUT
Pin Circuit Description
1 C27 20LB/WT A/C COMPRESSOR CONTROL
2 C27 20LB/WT A/C COMPRESSOR CONTROL
2 Z902 20BK GROUND
2 Z931 20BK GROUND

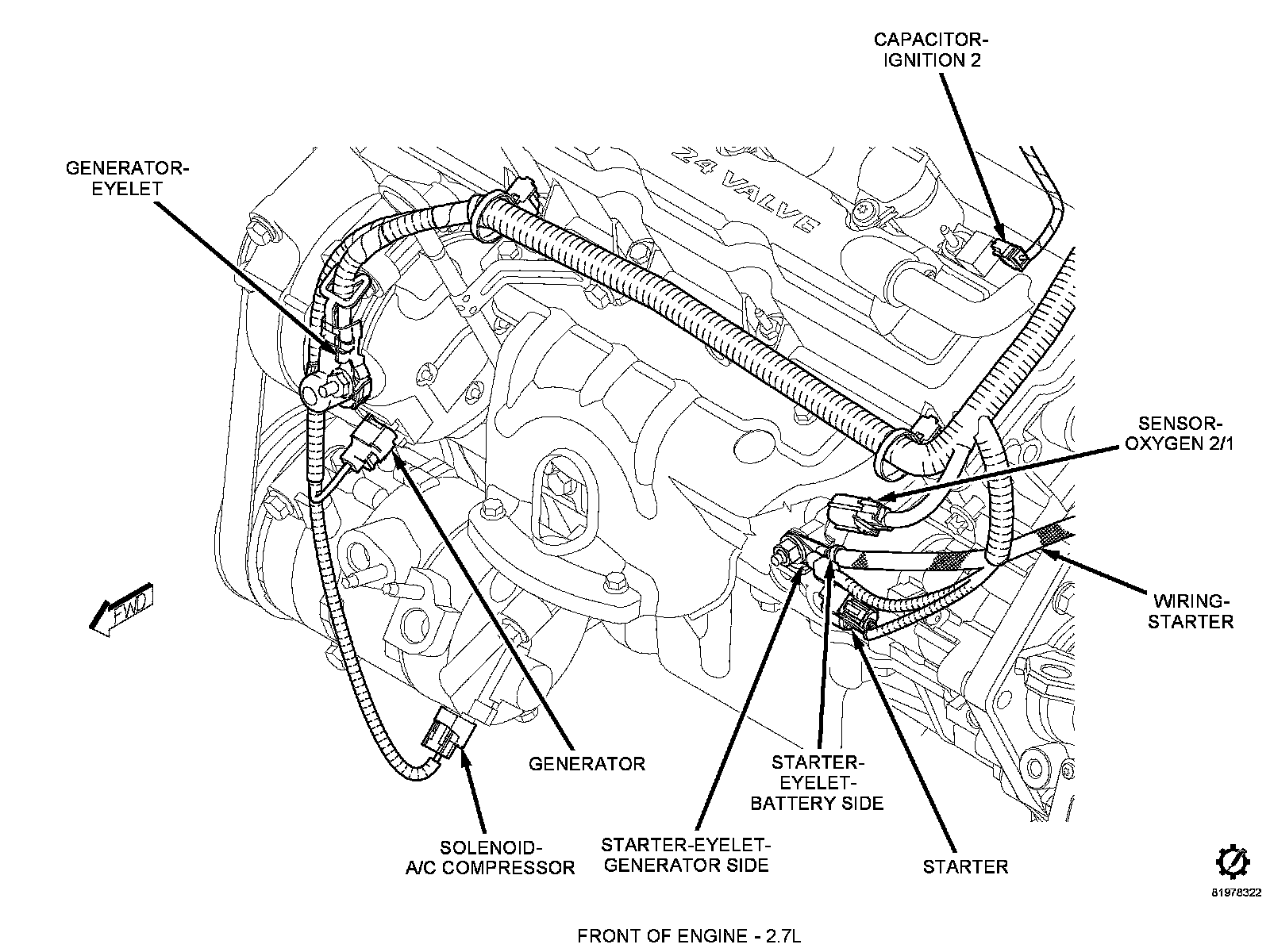

Component Location - 23




Component Location - 27




Component Location - 29




Component Location - 33
