Switch- Limit- Tonneau Extended

Component ID: 458

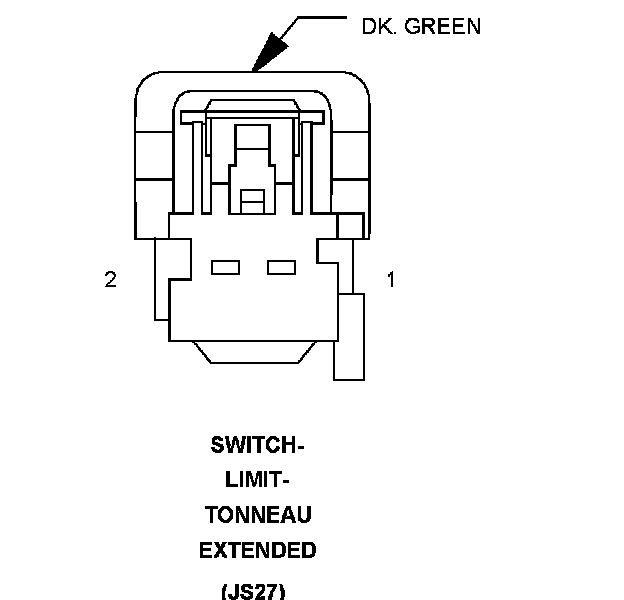

Component : SWITCH- LIMIT- TONNEAU EXTENDED

Connector:
Name : SWITCH- LIMIT- TONNEAU EXTENDED
Color : DK. GREEN
# of pins : 2
Qualifier : (JS27)




Pin Circuit Description
1 Q982 20LG/PK TONNEAU LIMIT SWITCH EXTENDED SIGNAL
2 Z916 20BK GROUND

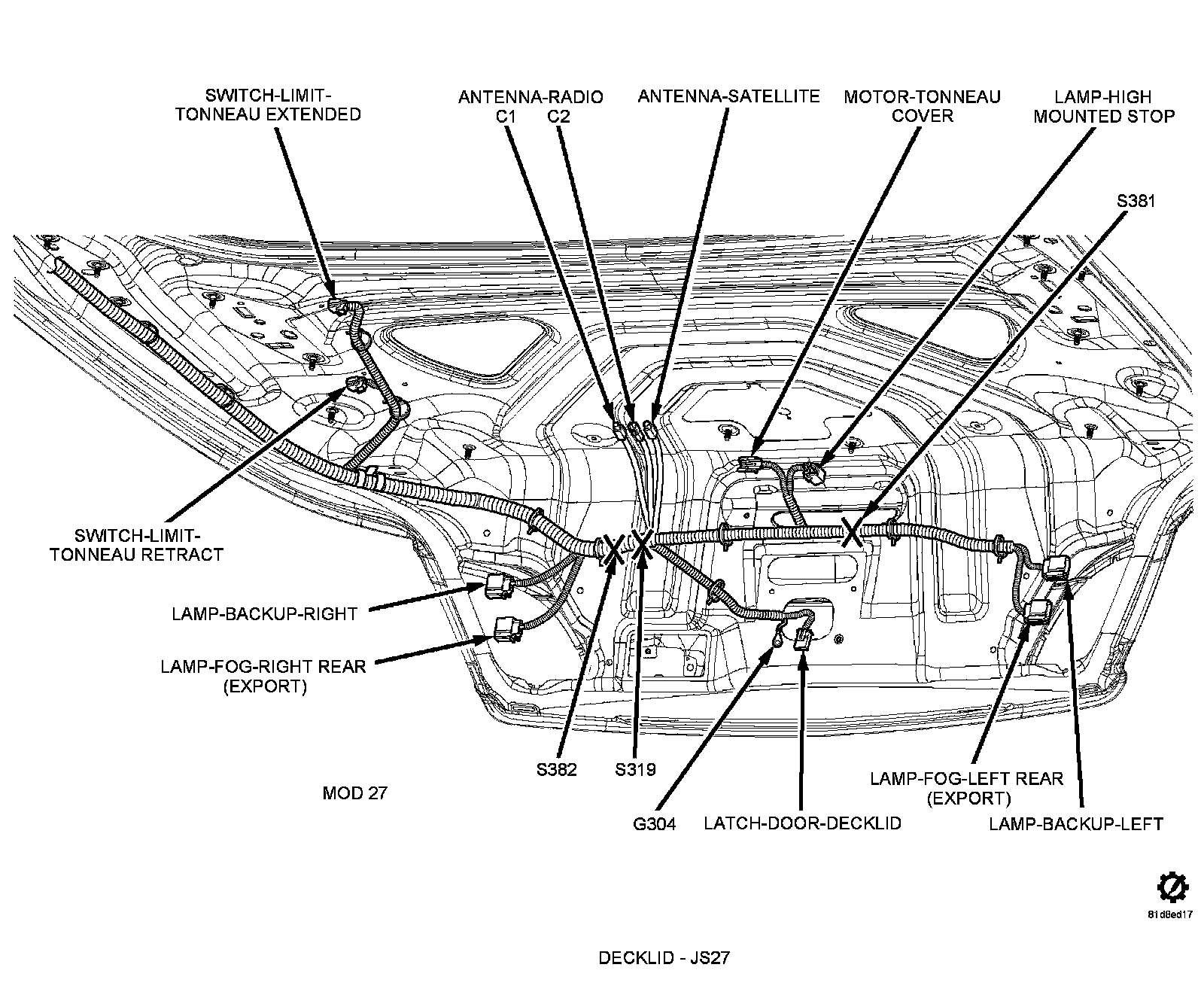

Component Location - 92
