Hood Sensor/Switch (For Alarm)

Component ID: 449

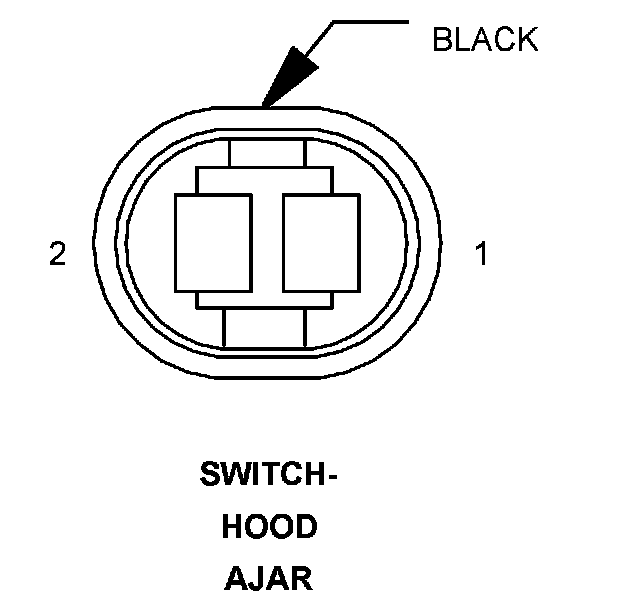

Component : SWITCH-HOOD AJAR

Connector:
Name : SWITCH-HOOD AJAR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 G70 20VT/LB HOOD AJAR SWITCH SENSE
2 Z920 20BK GROUND

Component Location - 6
