Sensor-Front Impact-Left

Component ID: 395
Component : SENSOR-FRONT IMPACT-LEFT

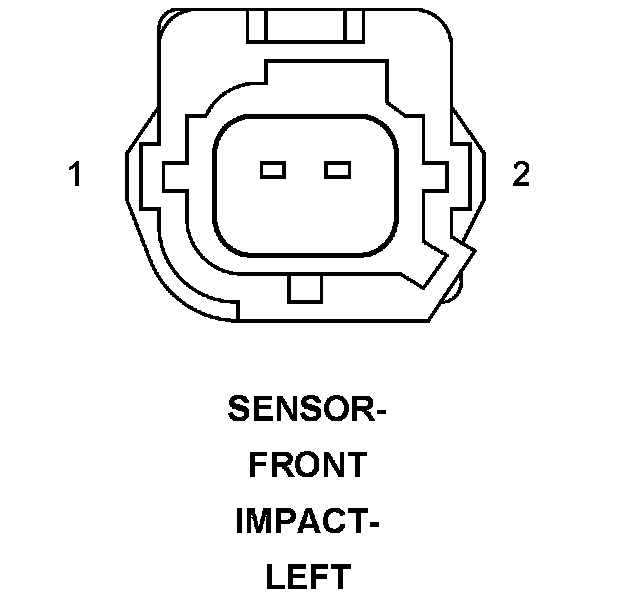

Connector:
Name : SENSOR-FRONT IMPACT-LEFT
Color :
# of pins : 2




Pin Circuit Description
1 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
2 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL

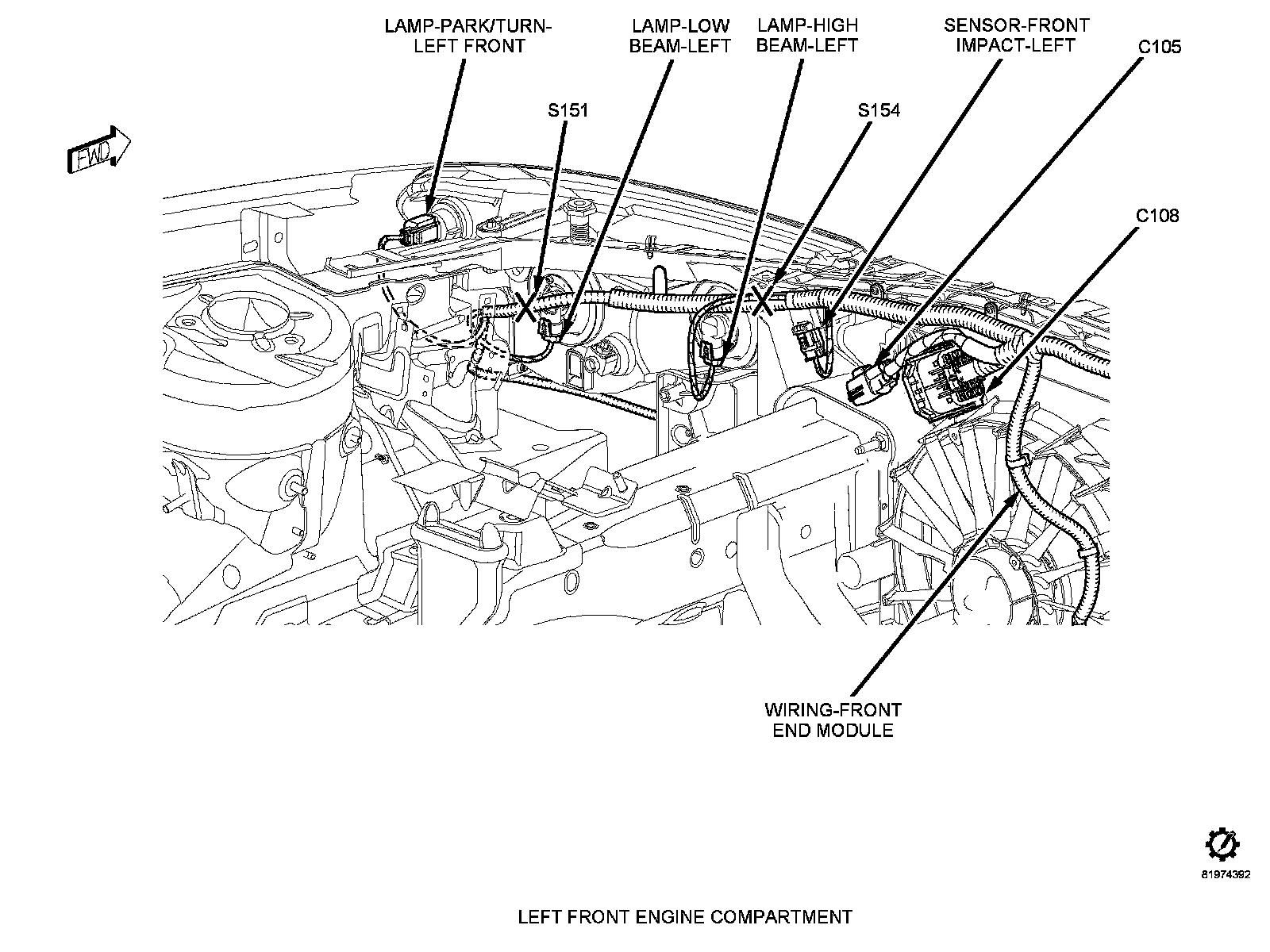

Component Location - 5
