Sensor-Side Impact-Left 1

Component ID: 415
Component : SENSOR-SIDE IMPACT-LEFT 1

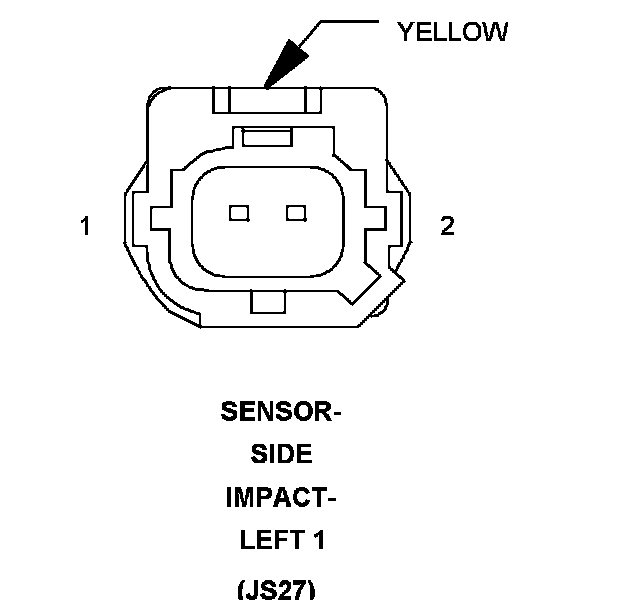

Connector:
Name : SENSOR-SIDE IMPACT-LEFT 1
Color : YELLOW
# of pins : 2
Qualifier : (JS27)




Pin Circuit Description
1 R15 20LG/BR LEFT SIDE IMPACT SENSOR 1 GROUND
2 R13 20LG/TN LEFT SIDE IMPACT SENSOR 1 SIGNAL

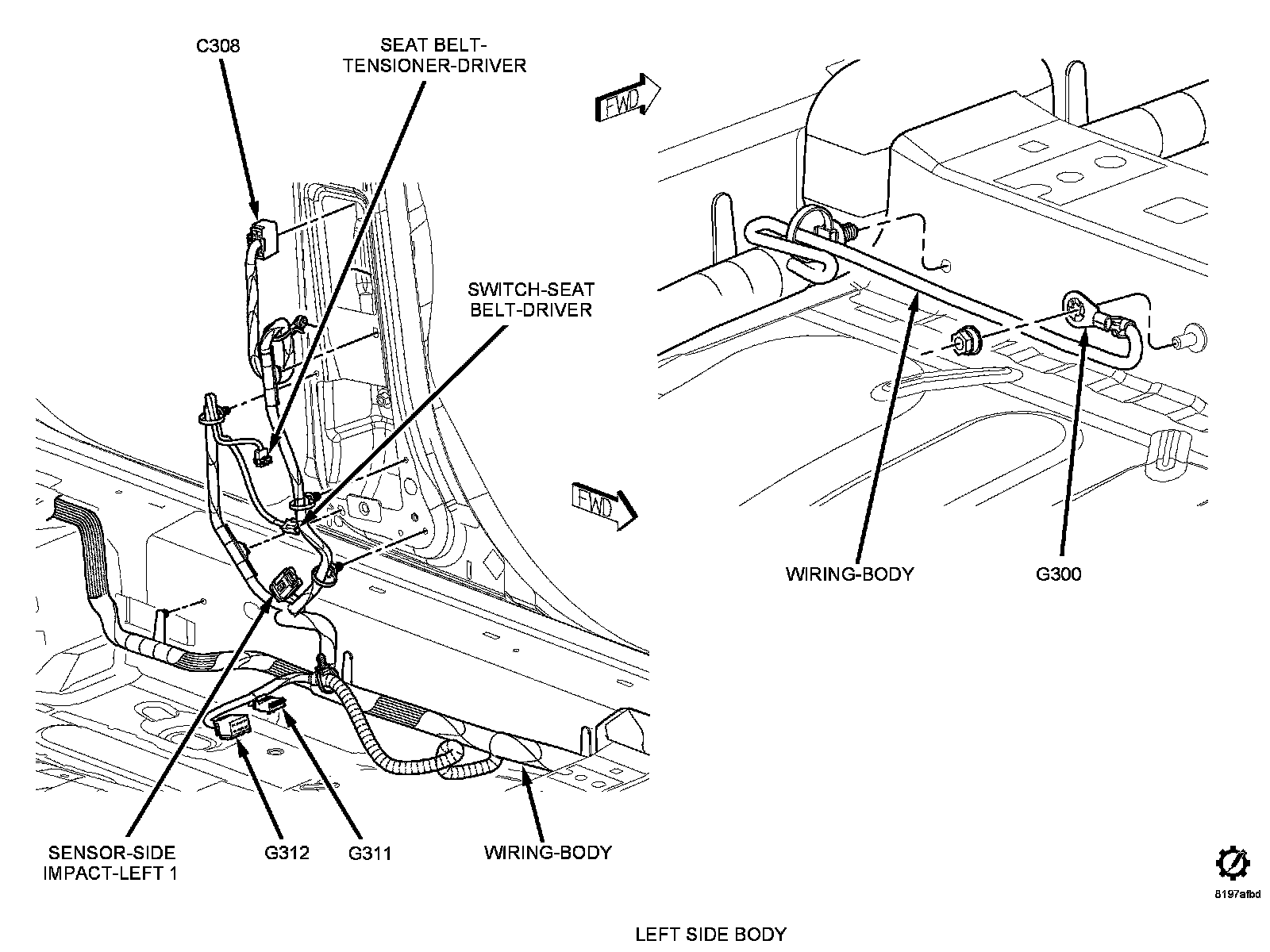

Component Location - 62




Component Location - 76

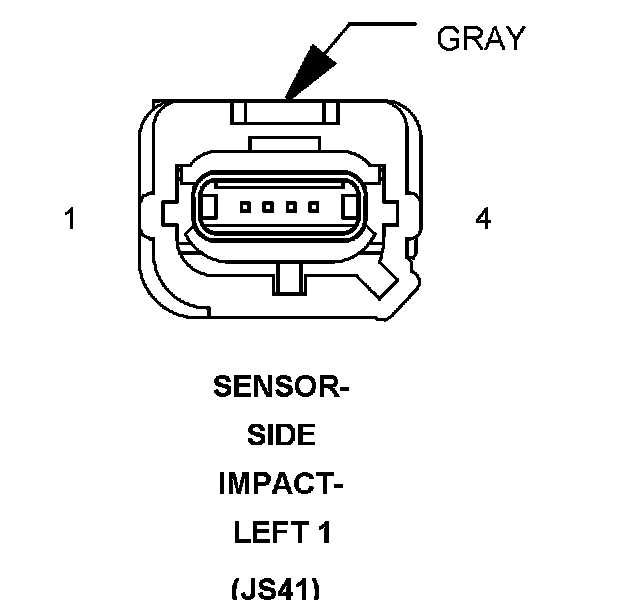

Connector:
Name : SENSOR-SIDE IMPACT-LEFT 1
Color : GRAY
# of pins : 4
Qualifier : (JS41)




Pin Circuit Description
1 R13 20LG/TN LEFT SIDE IMPACT SENSOR 1 SIGNAL
2 R15 20LG/BR LEFT SIDE IMPACT SENSOR 1 GROUND
3 R19 20LG/WT LEFT SIDE IMPACT SENSOR 2 GROUND
4 R17 20LG LEFT SIDE IMPACT SENSOR 2 SIGNAL

Component Location - 62




Component Location - 76
