Integrated Accessory Switch Assembly

Component ID: 444

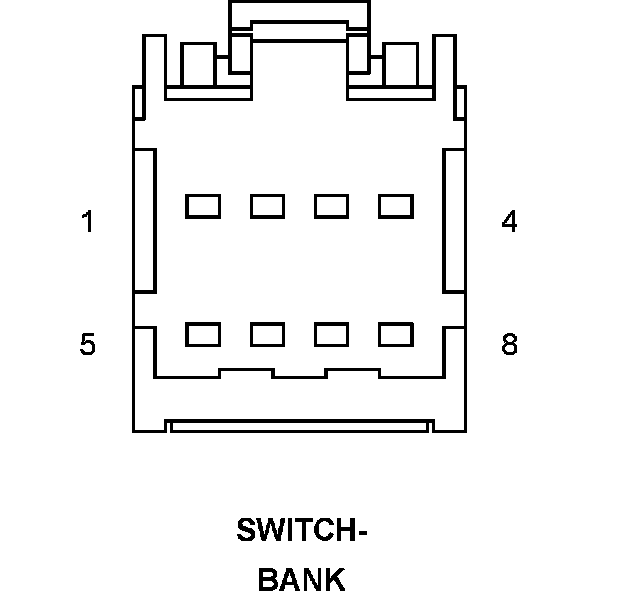

Component : SWITCH-BANK

Connector:
Name : SWITCH-BANK
Color :
# of pins : 8




Pin Circuit Description
1 - -
2 - -
3 - -
4 - -
5 - -
6 A935 20RD FUSED B(+)
7 Z912 20BK GROUND
8 D506 20WT/DG LIN BUS

Component Location - 44
