Sensor-Seat Track Position-Driver

Component ID: 413

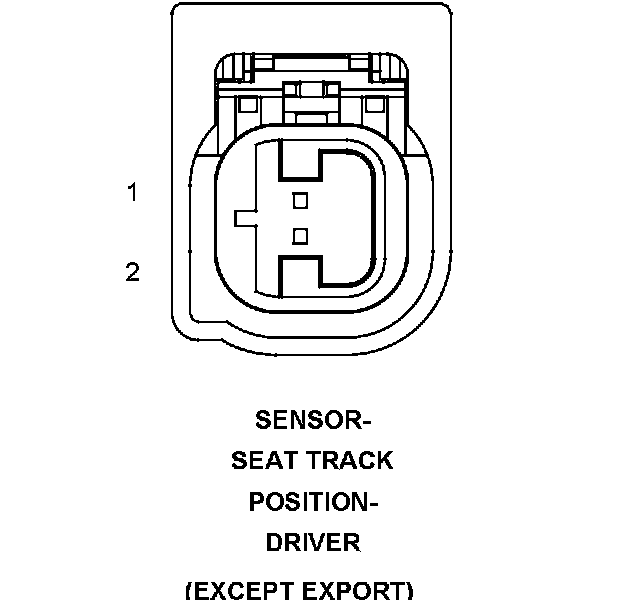

Component : SENSOR-SEAT TRACK POSITION-DRIVER

Connector:
Name : SENSOR-SEAT TRACK POSITION-DRIVER
Color :
# of pins : 2
Qualifier : (EXCEPT EXPORT)




Pin Circuit Description
1 R261 20LB/WT DRIVER SEAT POSITION SENSOR DATA
2 R263 20LB/VT DRIVER SEAT POSITION SENSOR VOLTAGE

Component Location - 66
