Steering Angle Sensor, Traction Control

Component ID: 419
Component : SENSOR-STEERING ANGLE

Connector:

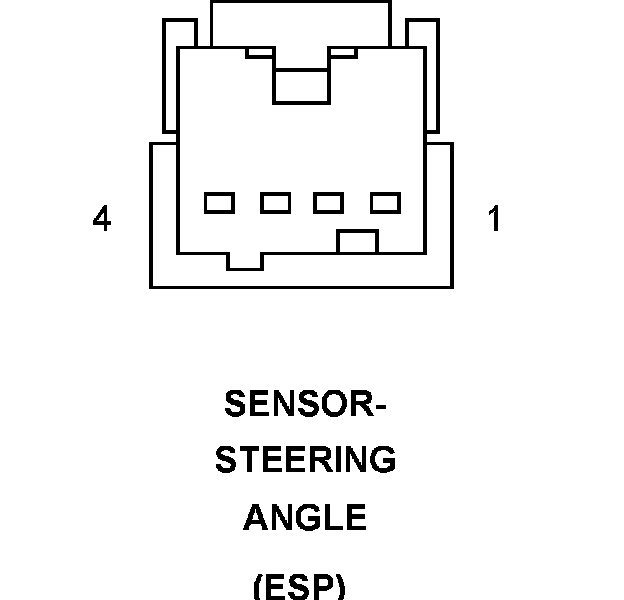

Name : SENSOR-STEERING ANGLE
Color :
# of pins : 4
Qualifier : (ESP)




Pin Circuit Description
1 D65 20WT/LG CAN C BUS (+)
2 D64 20WT/LB CAN C BUS (-)
3 Z910 20BK GROUND
4 F202 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)

Component Location - 39




Component Location - 41




Component Location - 44
